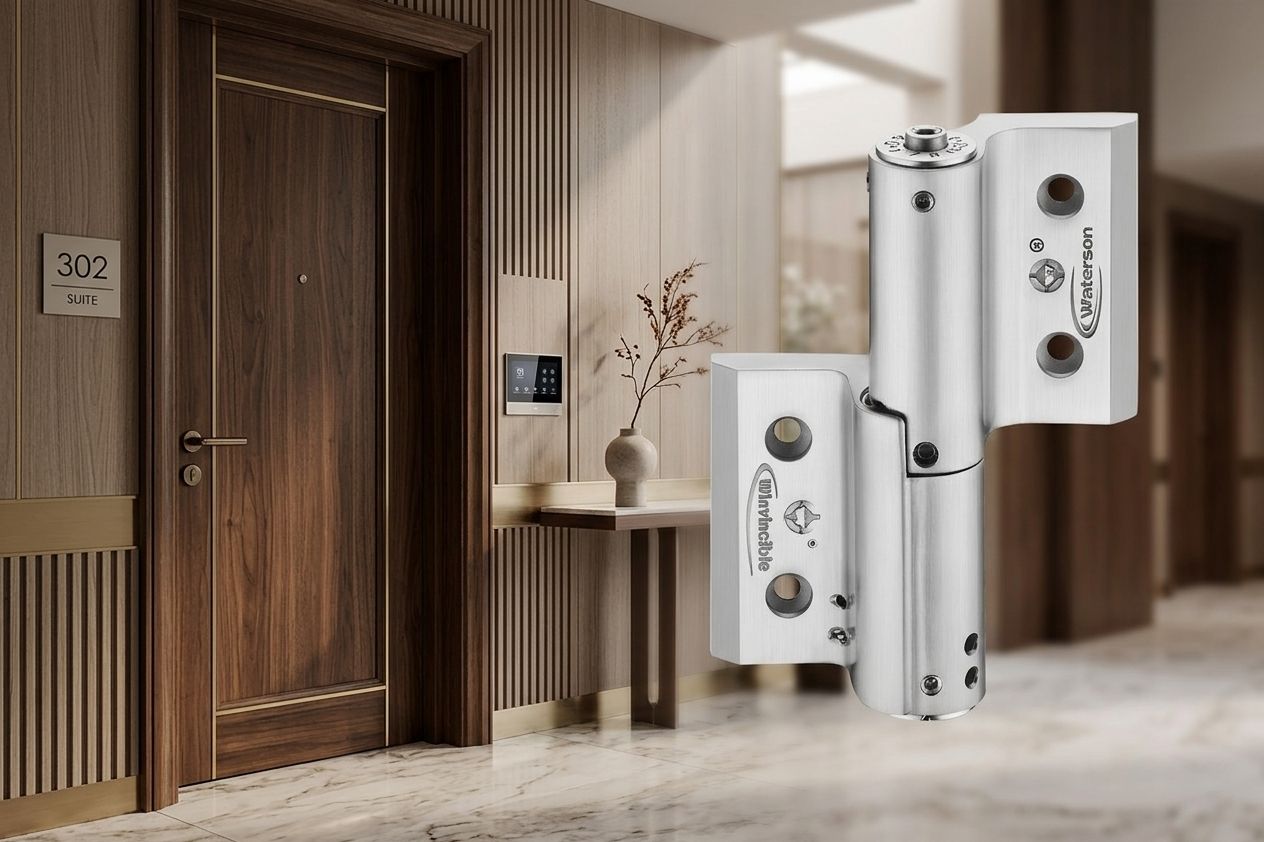

DHSW
飯店套房門 Hotel Suite Door
高端飯店套房與精品旅宿，重視安靜回位與細緻手感。
Premium hotel suites and boutique stays need a quiet close and refined touch.
D
HSW
W optional
APPLICATIONS · REAL DOOR SCENES
每一個型號
都有對應的真實門場景
D · K · M · R 四系列鉸鏈，涵蓋玻璃門系統、MDEA 雙固錨安裝與 W 隱藏式配線三大應用主題，12 款型號直接對應飯店、辦公室玻璃隔間、醫療、浴室輕量門、智慧門禁、機房、住宅與衛浴轉角淋浴間等真實場景。
D、K、M、R 四系列皆可安裝於任何門扇，差異在於頁片幾何與所需的安裝空間：D／K 為平行對貼的旗艦與通用款；M 需門與牆同平面（平面式）安裝；R 頁片偏軸凸出，特別適合牆與門呈 90°／45° 轉角、空間有限的場合。
以 UL-10362 Teflon 250°C 或 UL-1569 PVC 105°C 12 色扁排線整合，相容 ASSA ABLOY 行業標準。
4 Series
12 Models
Glass Door System
MDEA Anchor
MULTIFUNCTIONAL MODULAR SELF-CLOSING DOOR HINGE
多功能模組化自動關門門鉸鏈 · 應用場景
D / K / M / R × HSW / TSW / LSW
通過 ANSI A156.17 Grade 1
通過 1,000,000 次壽命測試
全系列可選配 W 隱藏式配線
D
View D Series
D 系列 · Flagship
DHSW / DTSW / DLSW · hotel, corridor and residential use
任何門扇皆可安裝；門與牆平行對貼安裝，旗艦全功能款。 Any door · parallel wall-to-door mount · full-feature flagship.

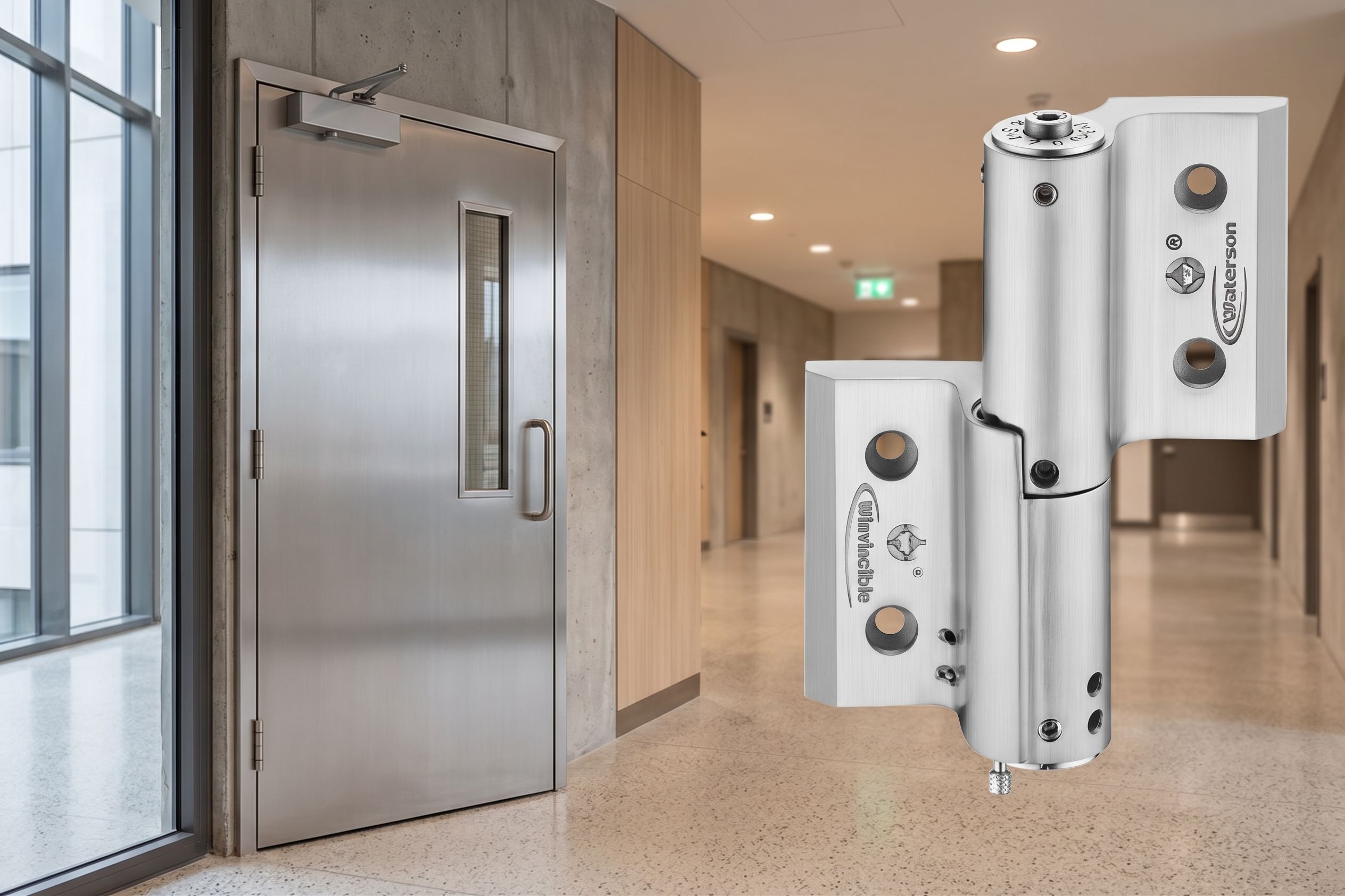

DTSW
防火走廊門 Fire-rated Corridor Door
公共走廊與防火門需要穩定閉合、耐用與長期可靠度。
Public corridors and fire-rated doors need stable closing, durability, and long-term reliability.
D
TSW
High cycle

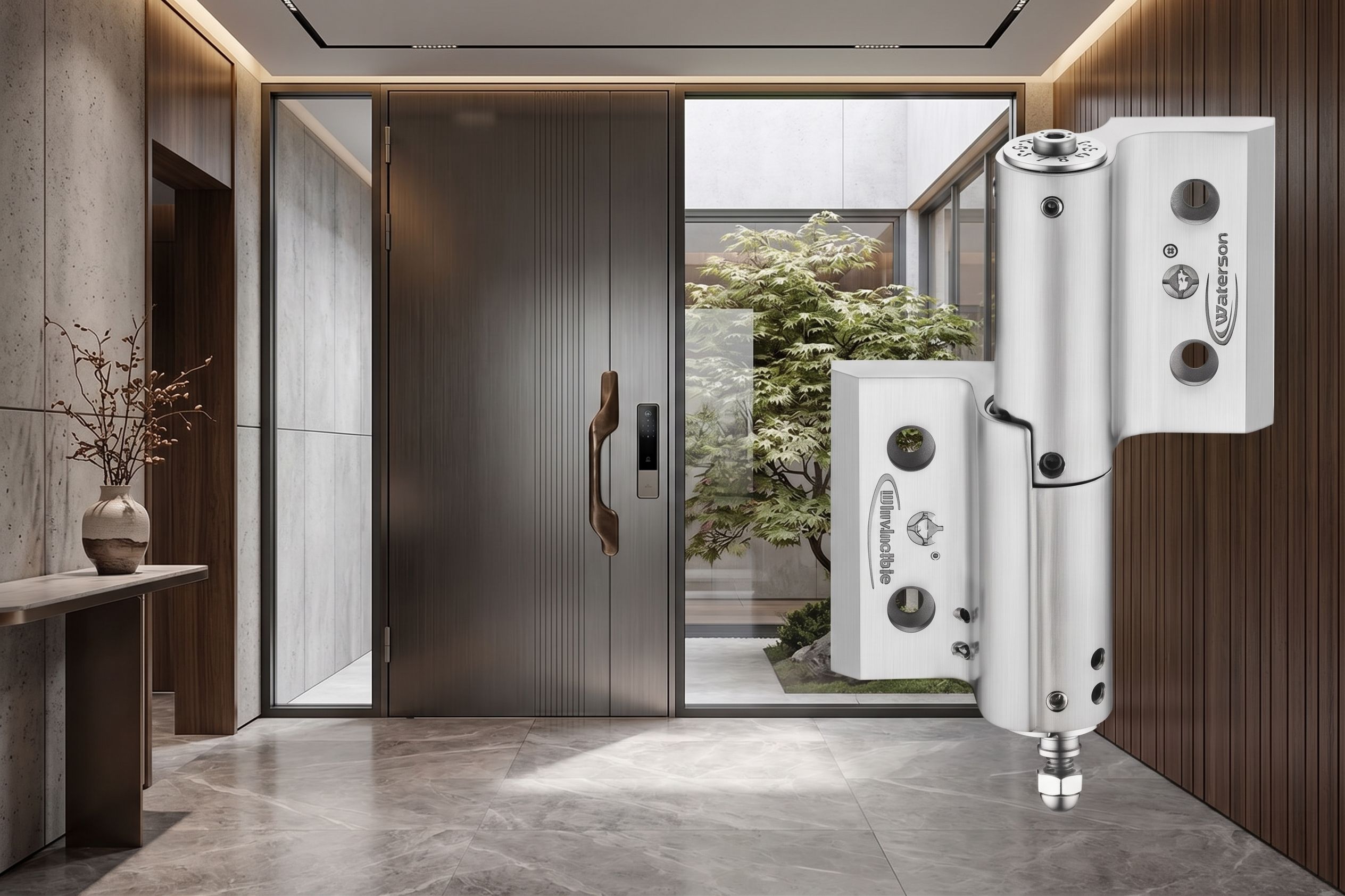

DLSW
住宅玄關門 Residential Entry Door
住宅玄關與高級別墅入口，兼顧美觀、安靜與電子整合。
Residential entries and villa doors balance appearance, quiet operation, and electronic integration.
D
LSW
Secure entry
K
View K Series
K 系列 · Universal
KHSW / KTSW / KLSW · glass, office and lightweight interior doors
任何門扇皆可安裝；門縫 ≥ 3.40 mm 即可現場改裝既有門框。 Any door · gap ≥ 3.40 mm · drop-in retrofit for existing frames.

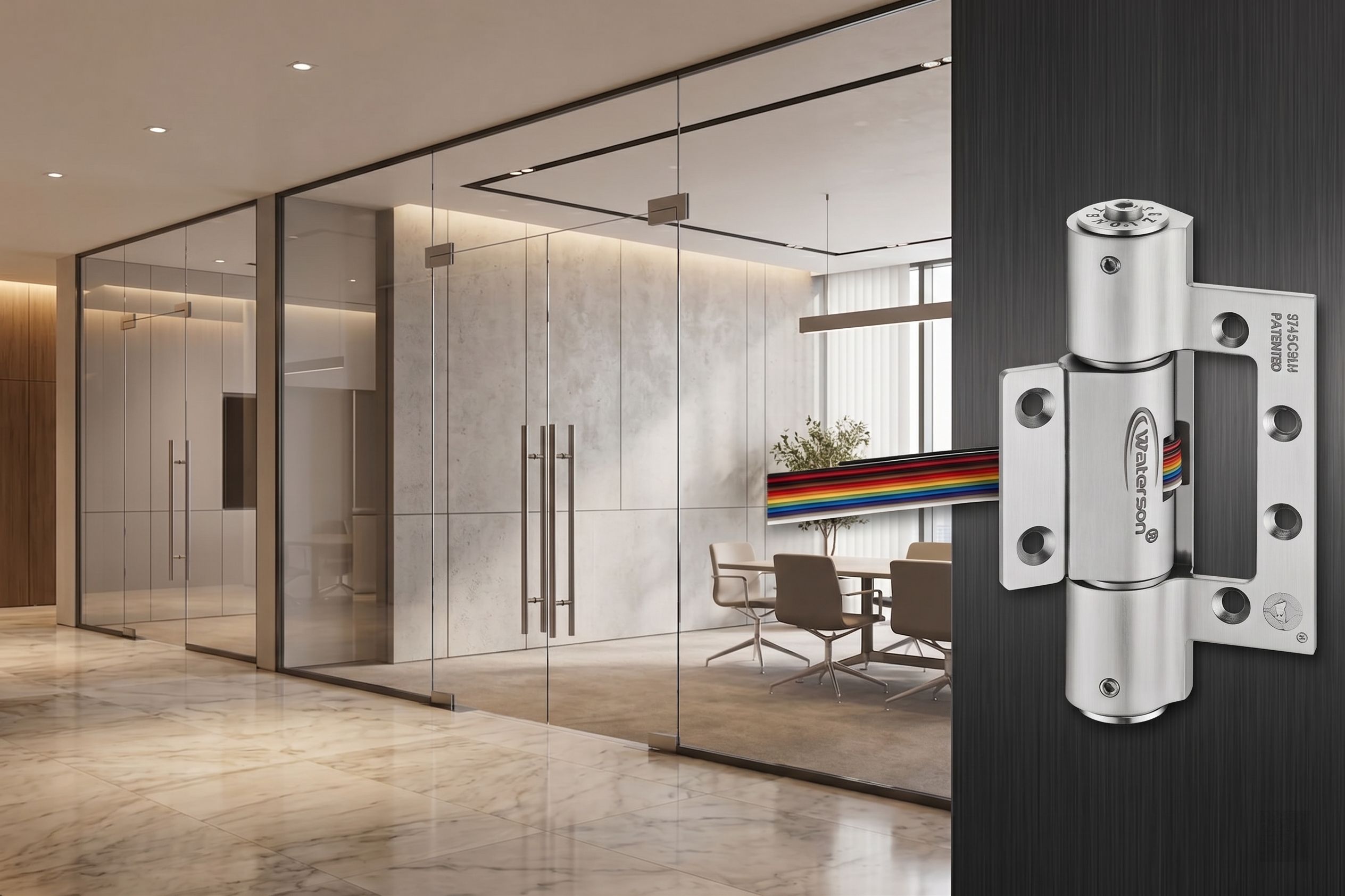

KHSW
辦公室玻璃隔間門 Office Glass Partition Door
玻璃隔間門講求俐落線條與穩定回位，液壓緩衝讓辦公室與會議室的玻璃門安靜順暢地自動關閉。
Glass partition doors need clean lines and stable closing — hydraulic damping closes office and meeting-room glass doors quietly and smoothly.
K
HSW
Glass office

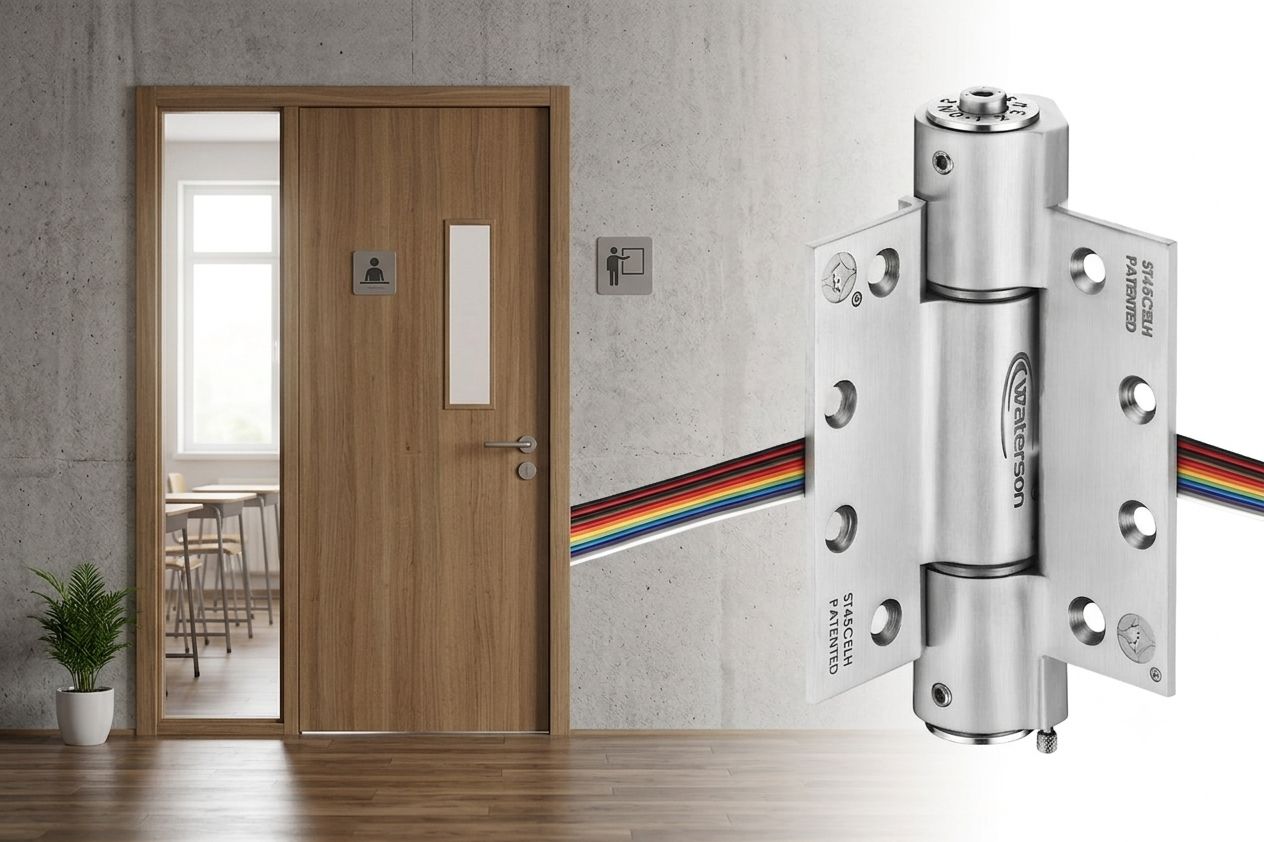

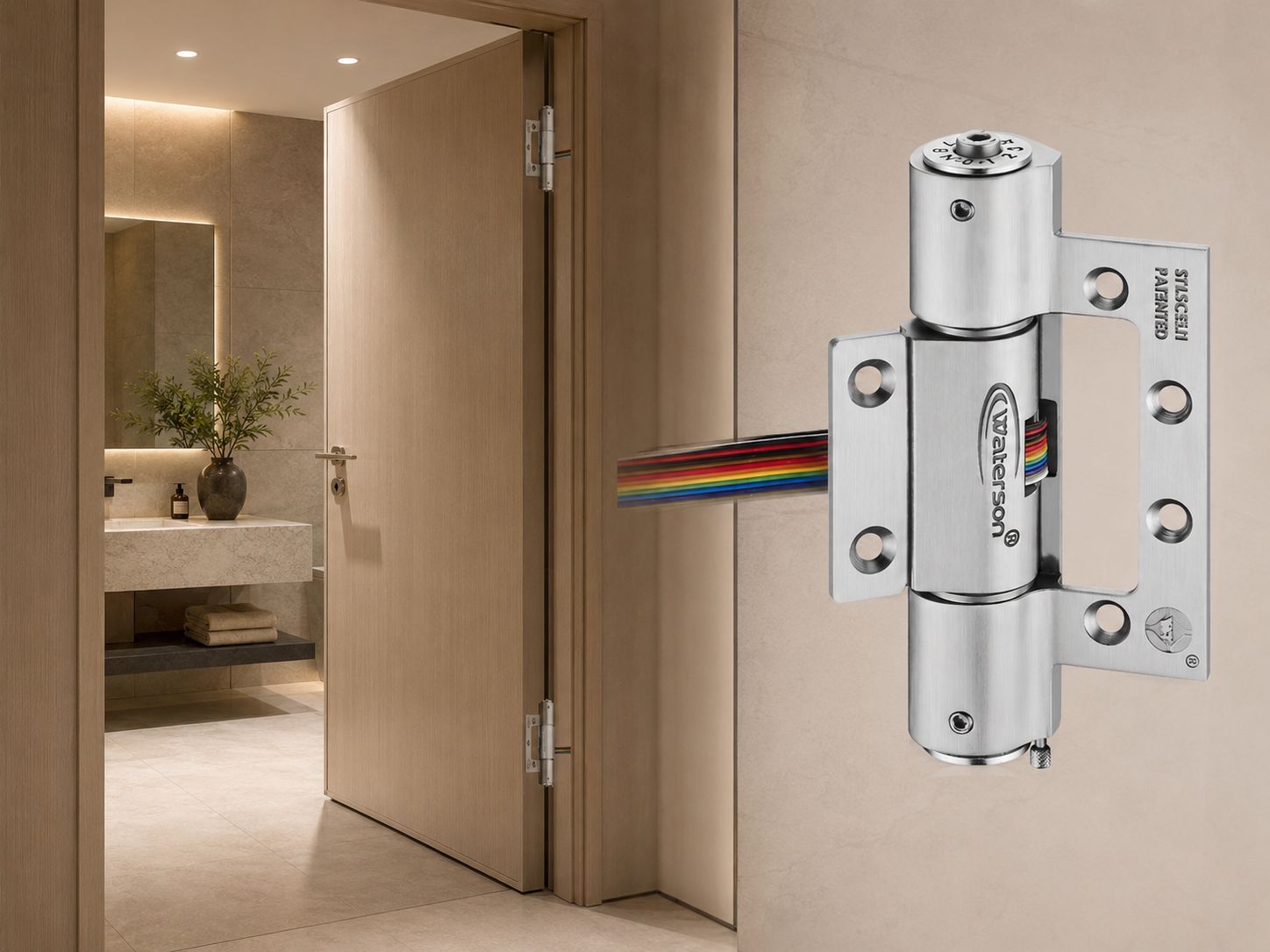

KTSW
輕量浴室門 Lightweight Bathroom Door
浴室與室內輕量門重視安靜緩衝與自動回位；隱藏式配線保持門面簡潔，不破壞室內質感。
Bathrooms and lightweight interior doors need quiet damping and reliable self-closing, with concealed wiring keeping the door face clean.
K
TSW
Lightweight

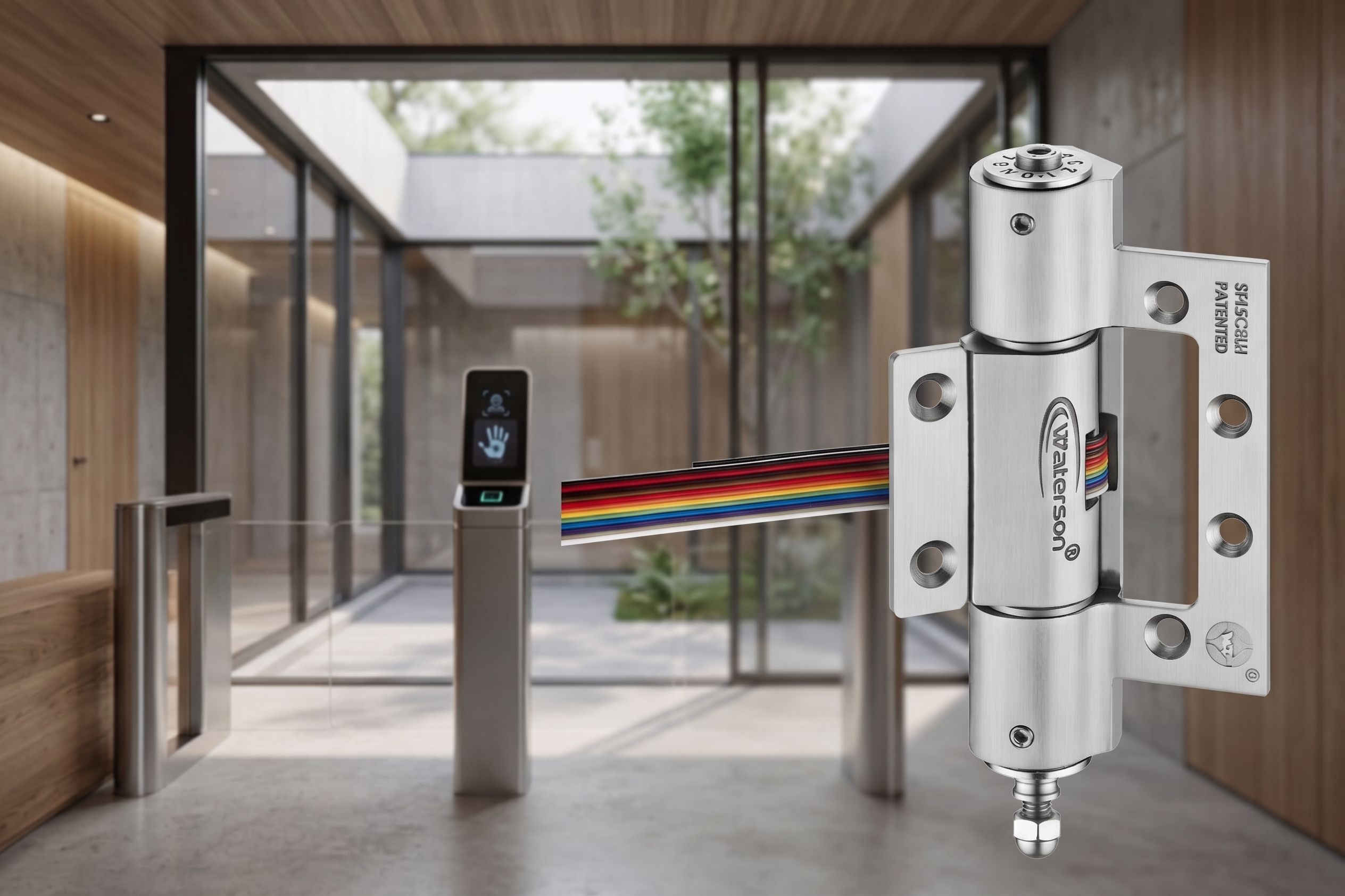

KLSW
智慧門禁入口 Smart Access-Control Entry
高階社區與辦公大樓入口整合生物辨識門禁，電控鎖搭配緊急逃生功能，隱藏配線與門禁系統無縫串接。
Premium residential and office building entrances integrate biometric access control — electric lock with emergency escape, and concealed wiring connects seamlessly with the access-control system.
K
LSW
Access control
M
View M Series
M 系列 · Mortise
MHSW / MTSW / MLSW · flat, flush-mount doors for healthcare, classroom and secure rooms
任何門扇皆可安裝；頁片重疊互嵌，需門與牆同平面（180° 平貼）安裝，故常見於平面標準門框場景。 Any door · leaves interlock, needs a flat 180° flush mount · fits standard flat door frames.

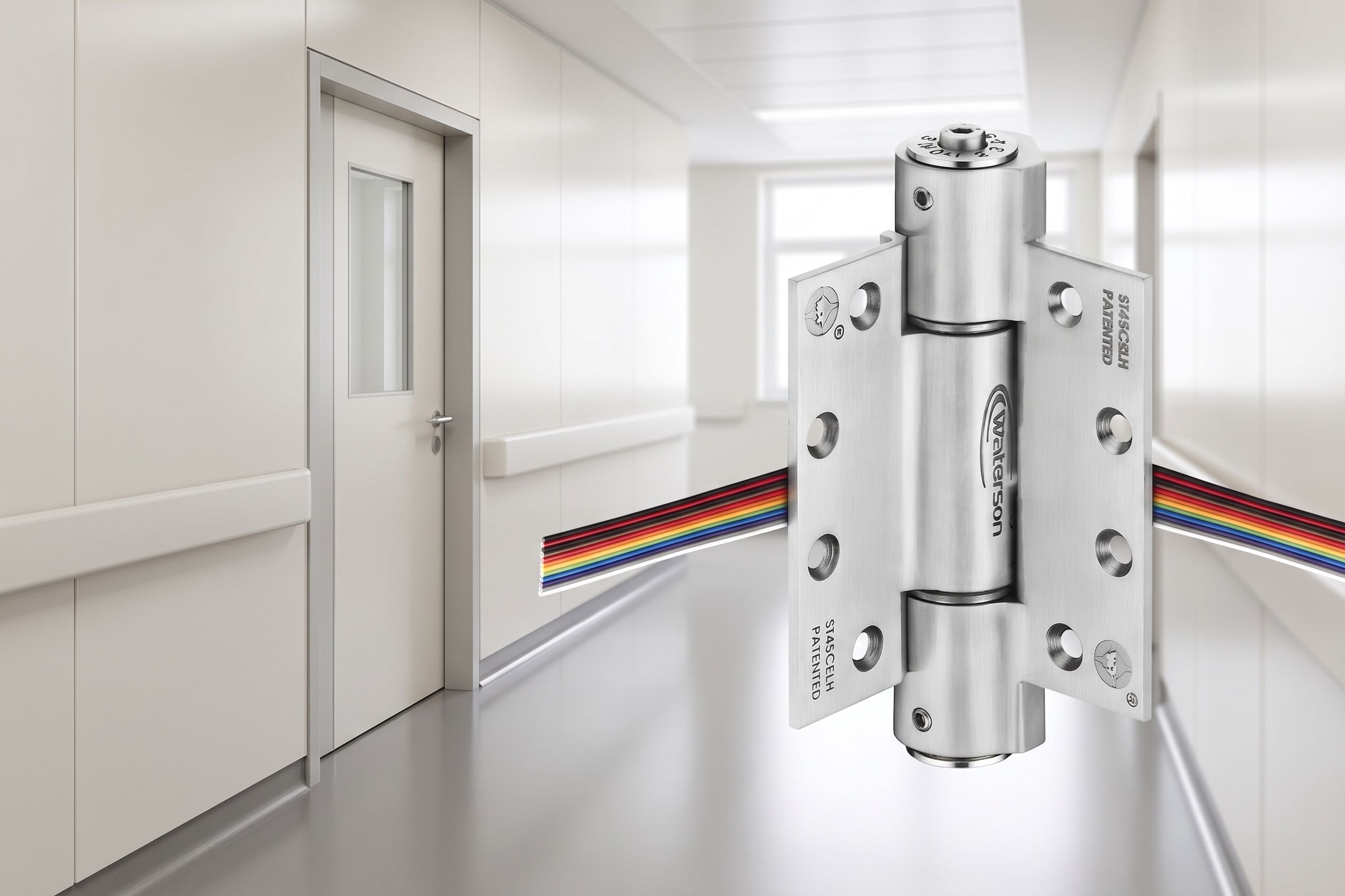

MHSW
醫療走廊門 Healthcare Door
診所、醫院與照護空間重視衛生、穩定與高頻使用，門框與牆面呈平面標準安裝。
Clinics, hospitals, and care spaces value hygiene, stability, and high-cycle use, with a standard flat door-to-wall mount.
M
HSW
Flat mount
MTSW
教室門 Classroom Door
教室與培訓空間需要耐用、安靜且能長期維持一致回位。
Classrooms and training rooms need durable, quiet, and consistently closing doors.
M
TSW
Education

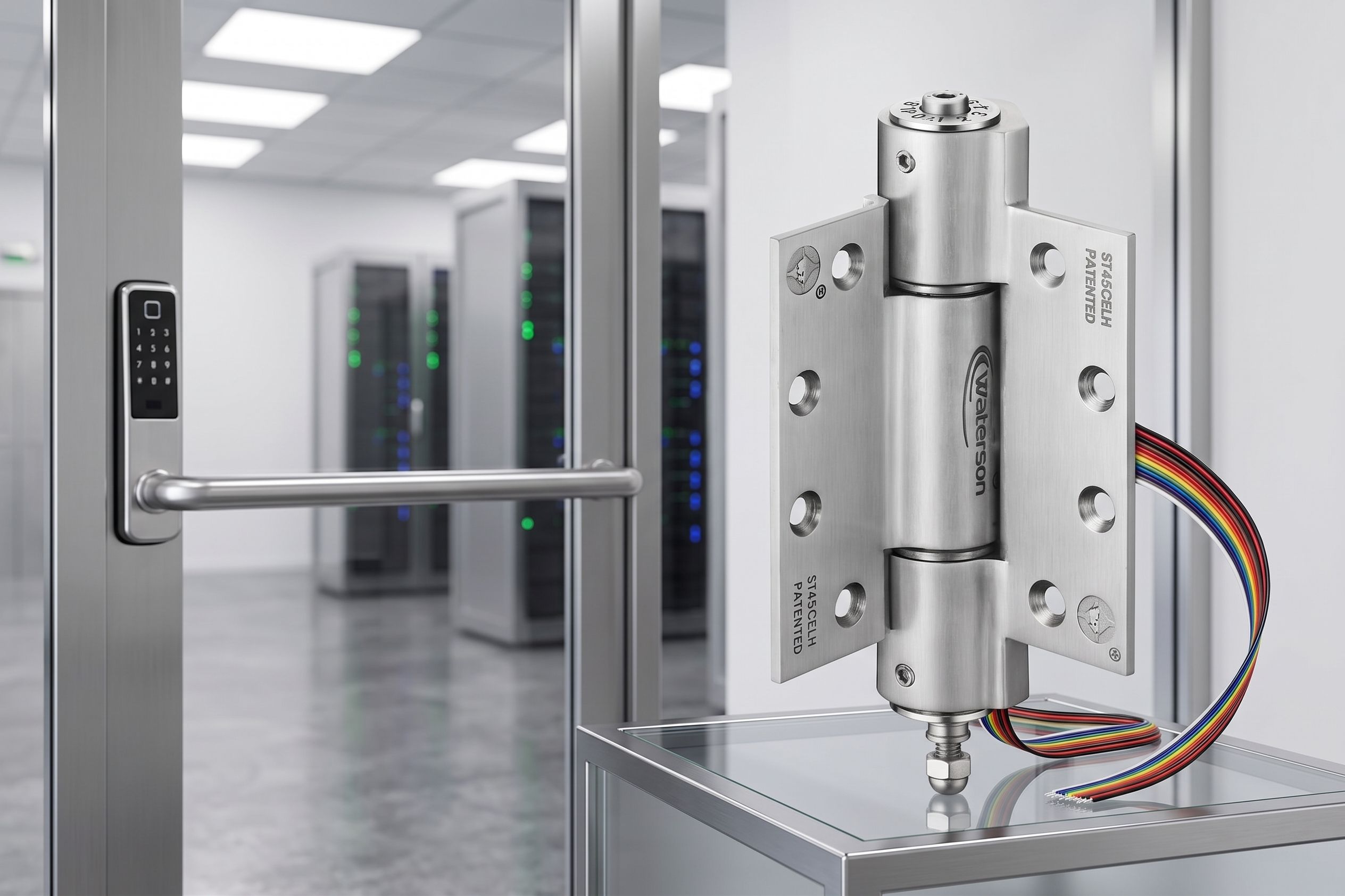

MLSW
機房金屬門 Server Room Metal Door
機房與資料中心的金屬門需要電子鎖門禁與緊急逃生整合，確保設備安全同時符合逃生法規。
Server room and data center metal doors need electric-lock access control with emergency escape — securing equipment while staying code-compliant.
M
LSW
Server room
R
View R Series
R 系列 · Barrel Raised
RHSW / RTSW / RLSW · 90°／45° corner & space-constrained installs
任何門扇皆可安裝；頁片偏軸凸出，所需平面深度較小，特別適合牆與門呈 90°／45° 轉角、後方空間不足以裝平面型鉸鏈的場合。 Any door · offset leaf needs less flat depth · ideal for 90°/45° corners where a flat mortise hinge won't fit.

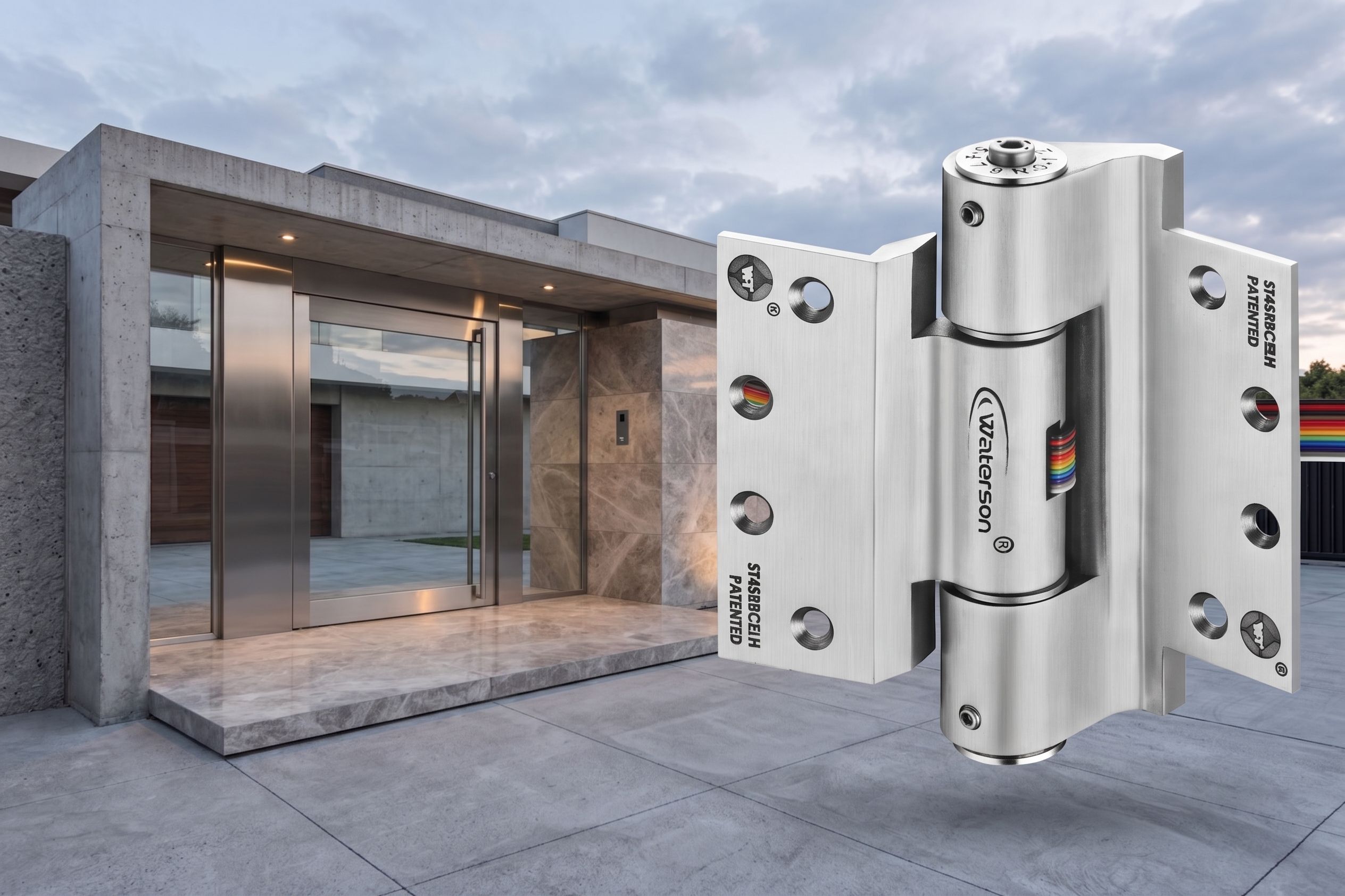

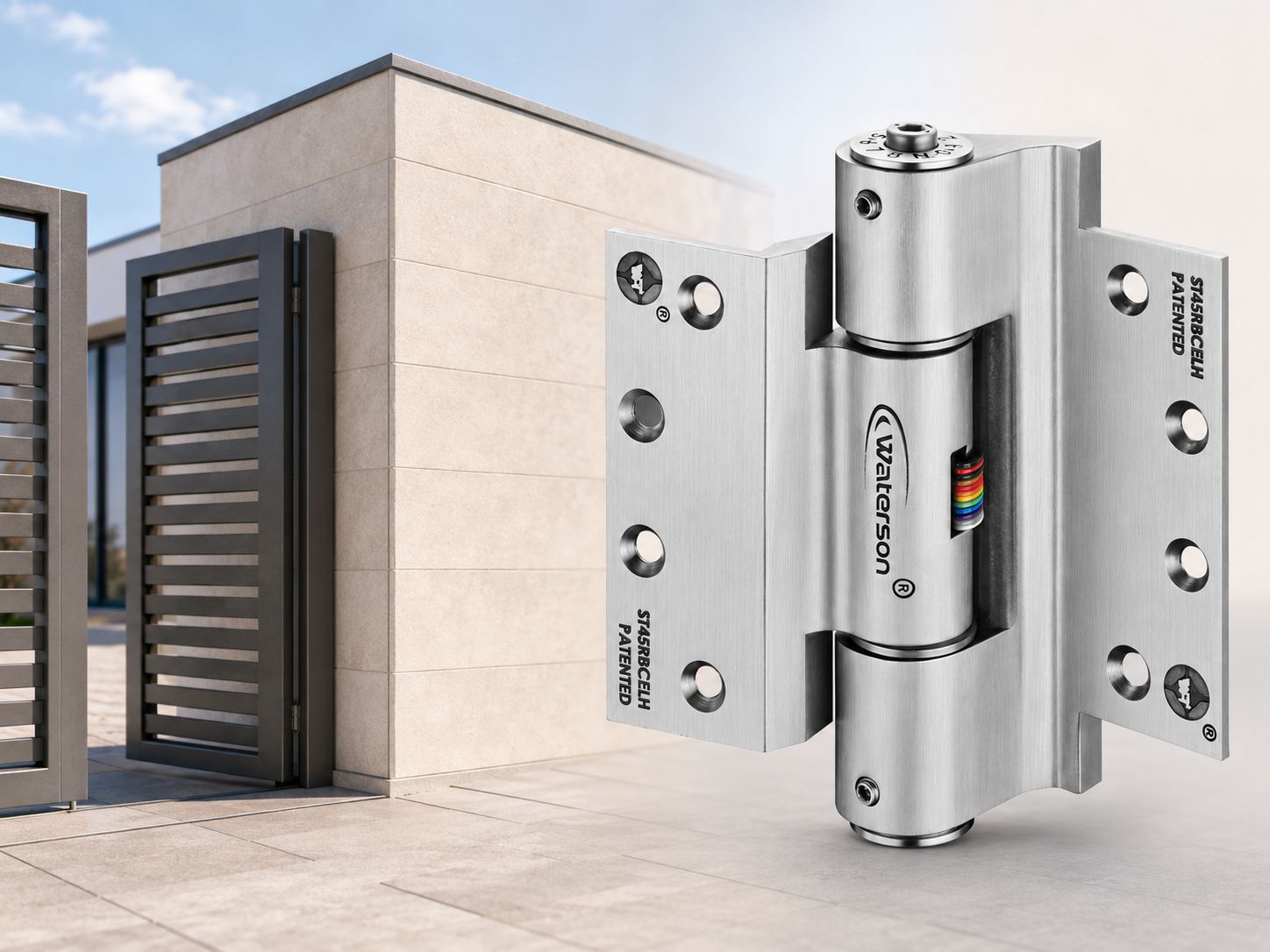

RHSW
不鏽鋼戶外門 Stainless Steel Exterior Door
全不鏽鋼結構耐候防蝕，適合戶外與轉角空間受限的門柱；液壓緩衝確保重門穩定自動關閉。
Full stainless steel construction resists weather and corrosion — ideal for exterior and tight-corner posts, with hydraulic damping closing heavy doors reliably.
R
HSW
Stainless

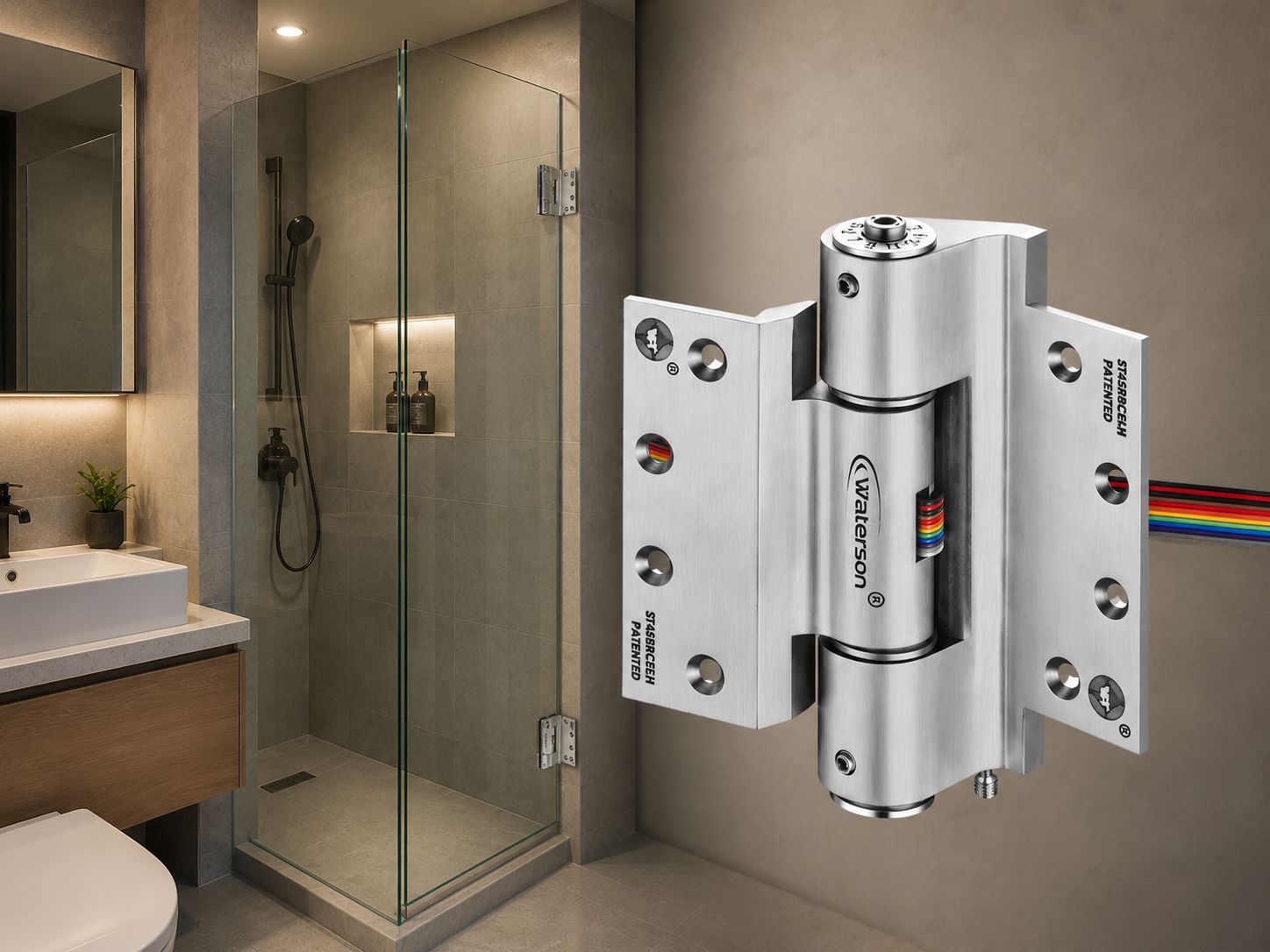

RTSW
衛浴乾濕分離轉角淋浴門 Bathroom Corner Shower Door
小坪數衛浴的乾濕分離空間，牆與門常呈 90° 或 45° 轉角、後方深度有限，正是 R 系列凸軸設計最擅長的場合；機械煞車＋安全栓提供可靠的暫停與穩定回位。
Compact wet/dry bathrooms often meet the wall at a 90° or 45° corner with limited depth behind — exactly where the R series' offset barrel leaf excels; the mechanical brake with safety pin holds the door reliably and closes it steadily.
R
TSW
Corner install

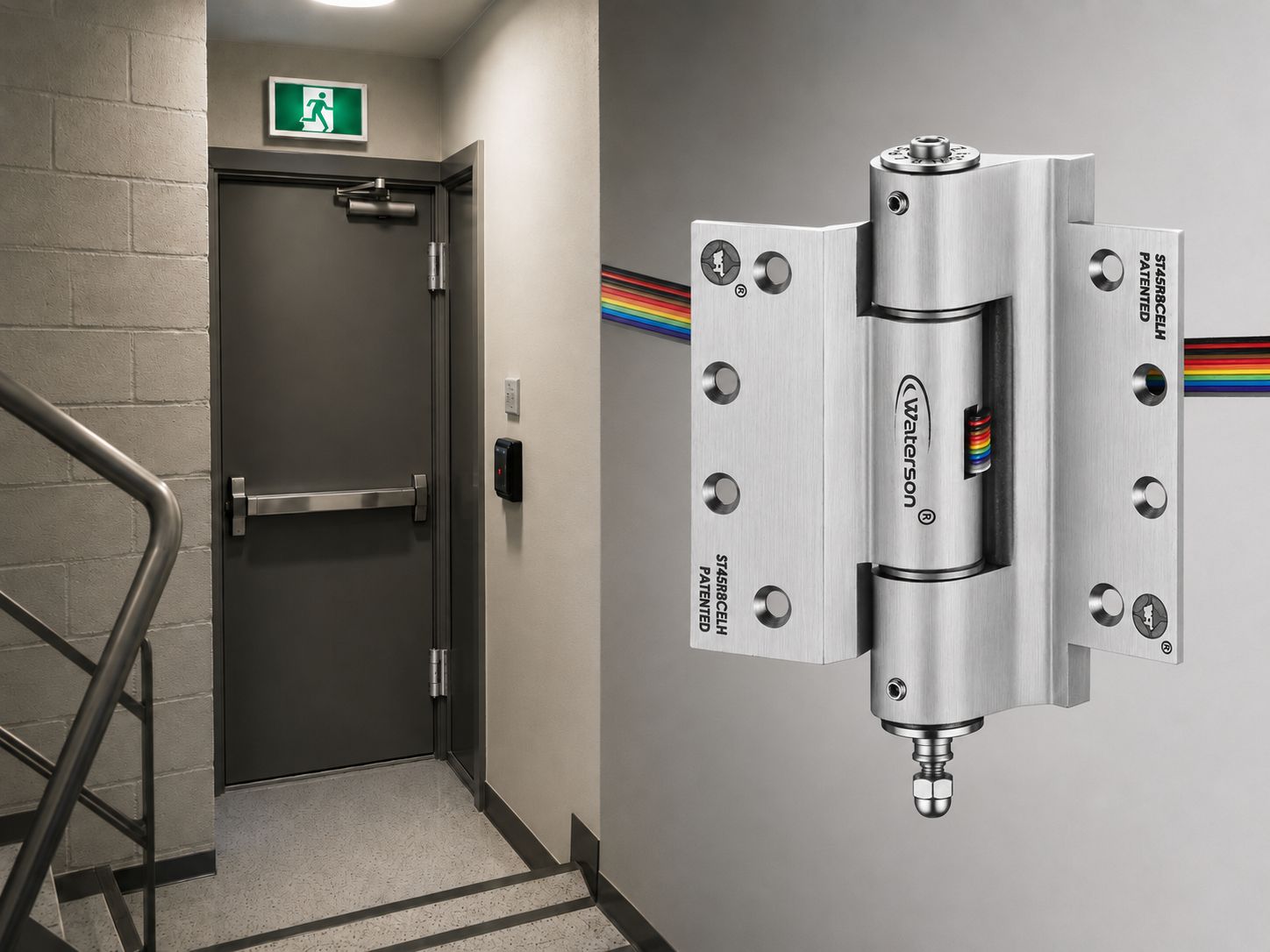

RLSW
樓梯間轉角逃生門 Stairwell Corner Exit Door
樓梯間轉角出入口空間有限，需要電子門禁與緊急逃生兼顧，R 系列凸軸頁片正好服貼轉角安裝。
Stairwell corner exits need both electronic access control and emergency egress in a tight corner — the R series' offset leaf fits cleanly into that limited space.
R
LSW
Emergency escape
Module Definitions 模組定義
W
可選配隱藏式配線
Optional concealed wiring
Optional concealed wiring
H
液壓緩衝煞車結構
Hydraulic damping brake structure
Hydraulic damping brake structure
T
機械煞車模組整合安全栓機構 — 可暫停門扇並強化安全防護
Mechanical brake module integrated with a safety pin mechanism for temporary door stopping and enhanced security
Mechanical brake module integrated with a safety pin mechanism for temporary door stopping and enhanced security
L
機電式鉸鏈鎖整合緊急逃生功能
Electromechanical hinge lock with emergency escape function
Electromechanical hinge lock with emergency escape function
S
扭力機械結構
Torque Control Mechanism
Torque Control Mechanism
+
特殊雙階齒輪轉換軸心設計，專為 D 系列鉸鏈打造（A-type 軸心）
A special pivot-core design with a dual-stage gear conversion mechanism, specially designed for the D hinge (A-type pivot core)
A special pivot-core design with a dual-stage gear conversion mechanism, specially designed for the D hinge (A-type pivot core)
Safety Mechanisms 安全機制

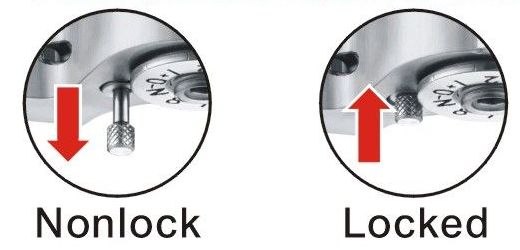

TS
With safety pin device 安全栓裝置
純機械安全栓可暫停門扇（Temporary door stopping），並提供防止未授權進入的額外防護（added protection against unauthorized entry）。

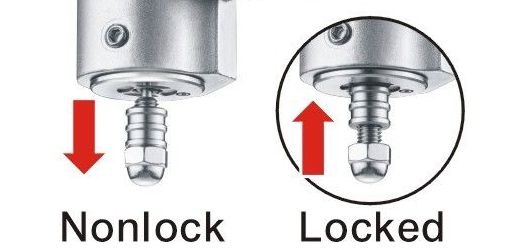

LS
With escape safety pin 逃生安全栓
緊急時可拉下逃生安全栓並立即推門離開（In an emergency, pull down the escape safety pin and push the door open immediately）。

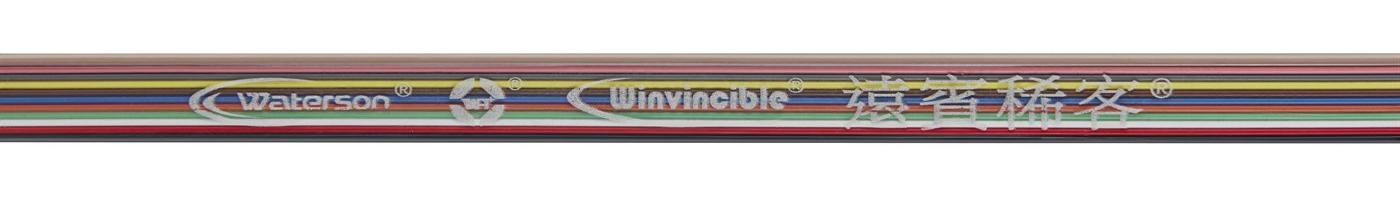

Concealed Wiring Options 隱藏式配線

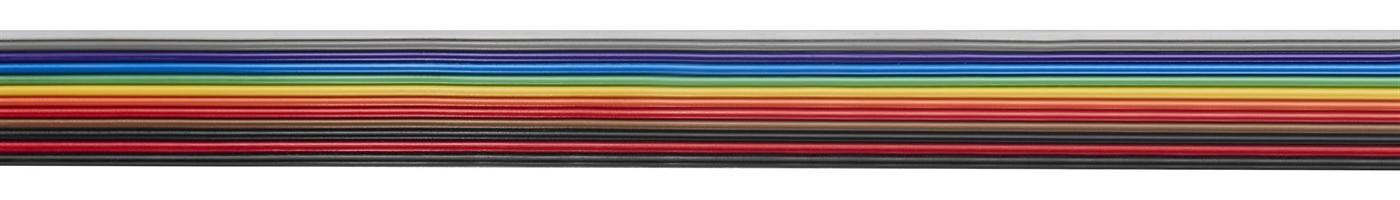

© Hidden wiring options: UL-10362 (Teflon 250°C AWG28) and UL-1569 (PVC 105°C AWG26).
© 12-color flat cable system compatible with industry standards used by ASSA ABLOY.

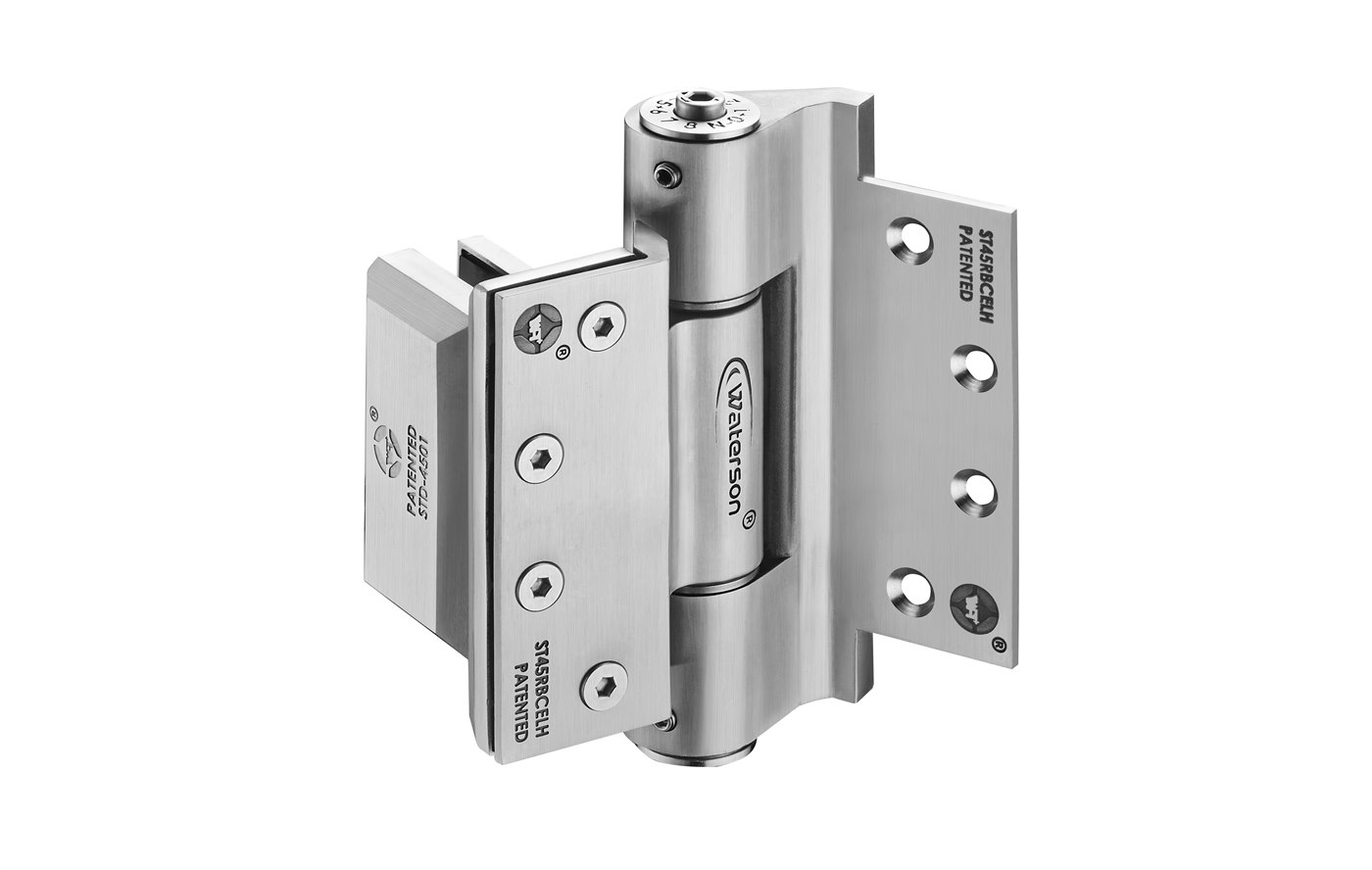

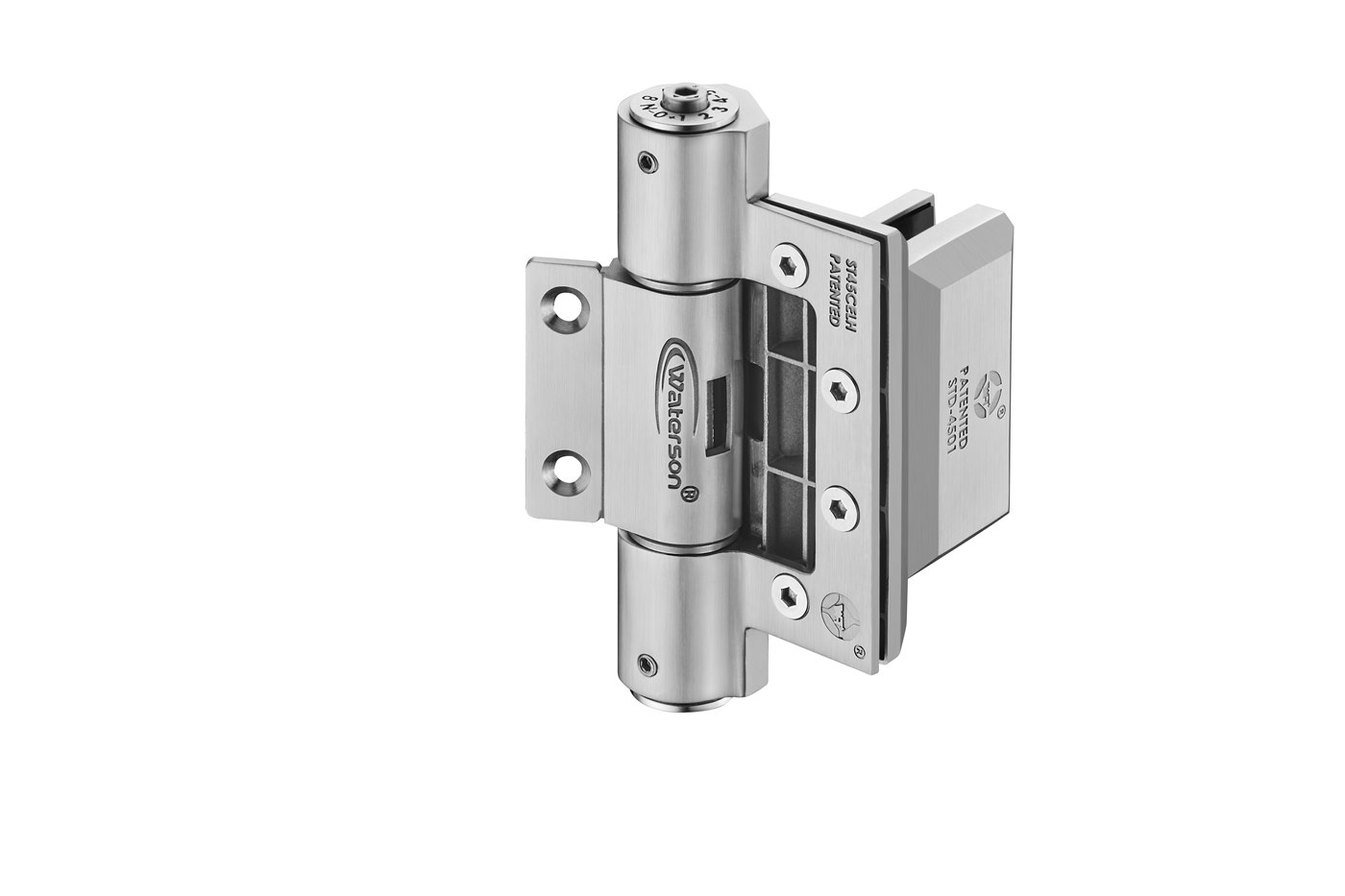

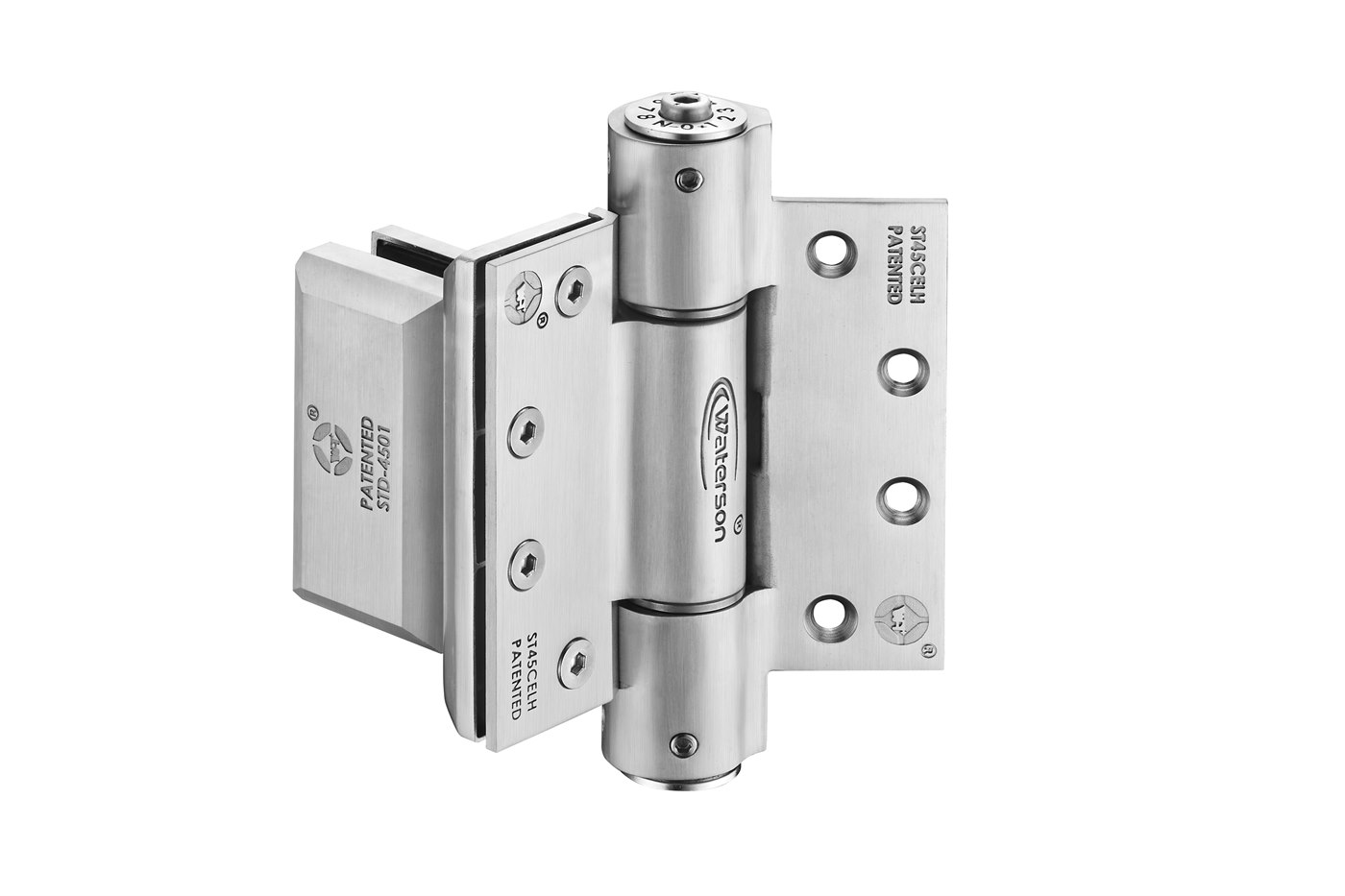

D.K.M.R. Hinge With Glass Door Hinge System 玻璃門鉸鏈系統
D
Glass to Glass
Wall to Glass
Frame to Glass
Wall to Glass
Frame to Glass
K
Wall to Glass
Frame to Glass
Frame to Glass
M
Wall to Glass
Frame to Glass
Frame to Glass
R
Wall to Glass
Frame to Glass
Frame to Glass

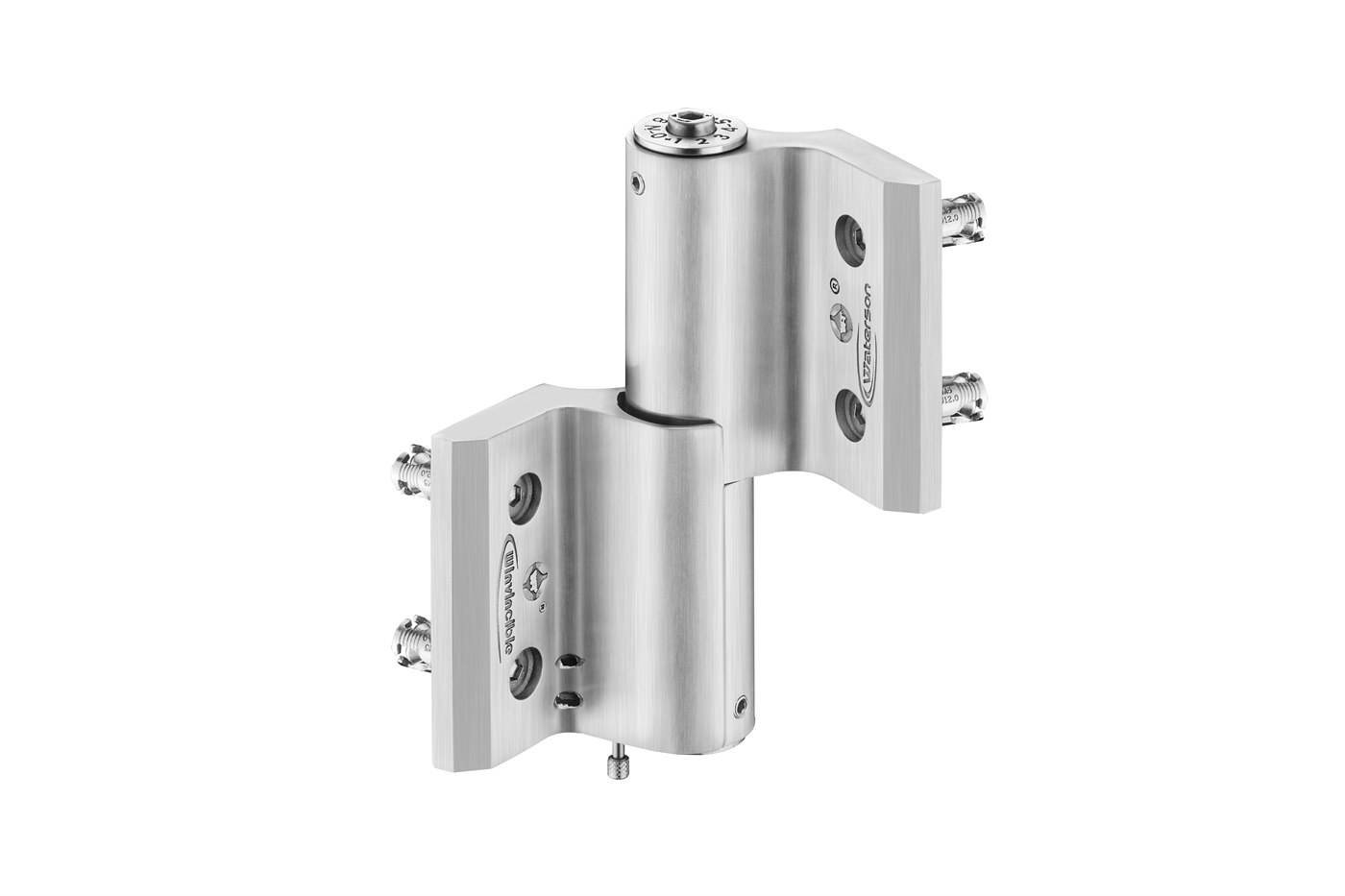

D
MDEA
K
MDEA

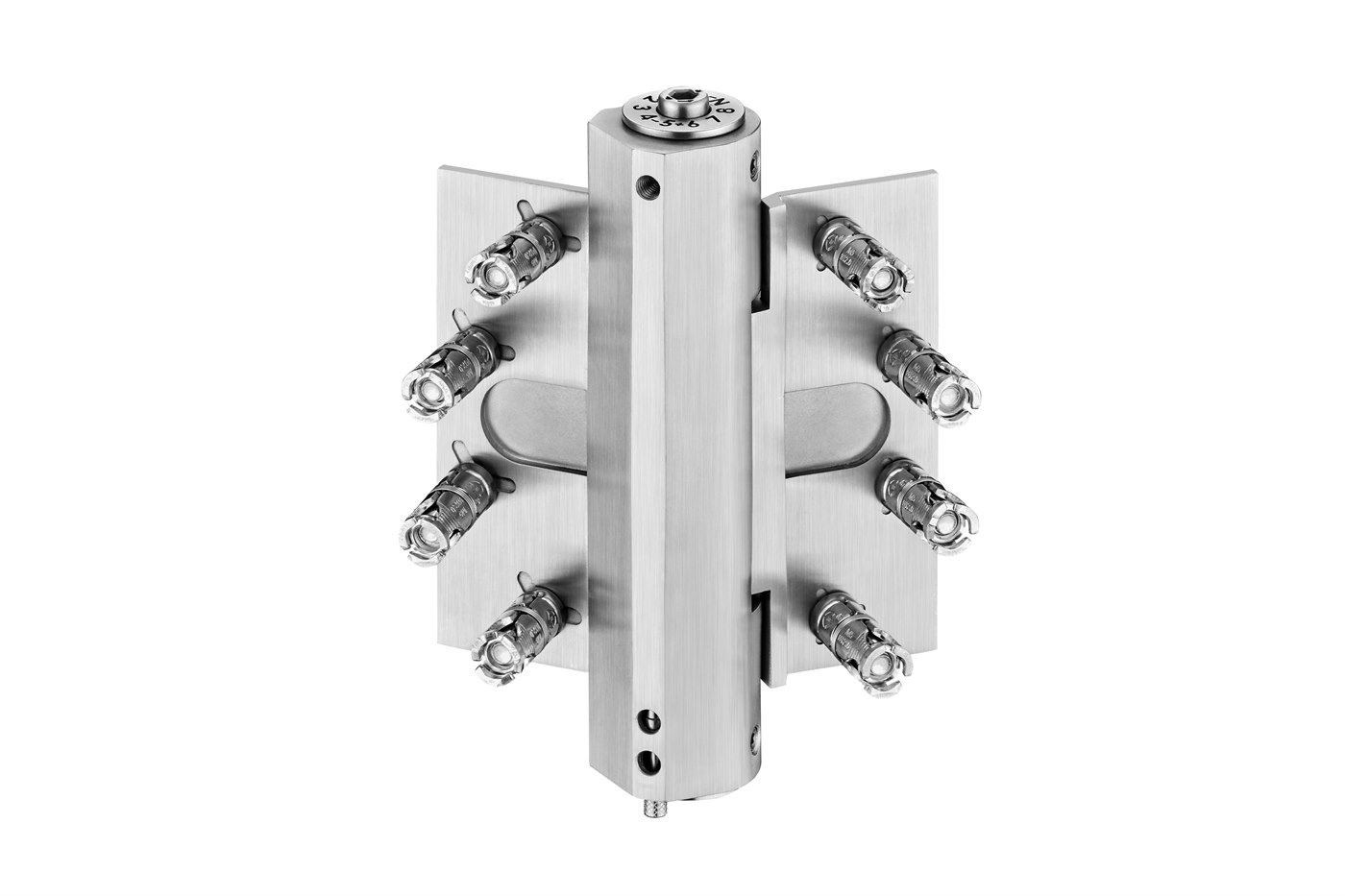

M
MDEA

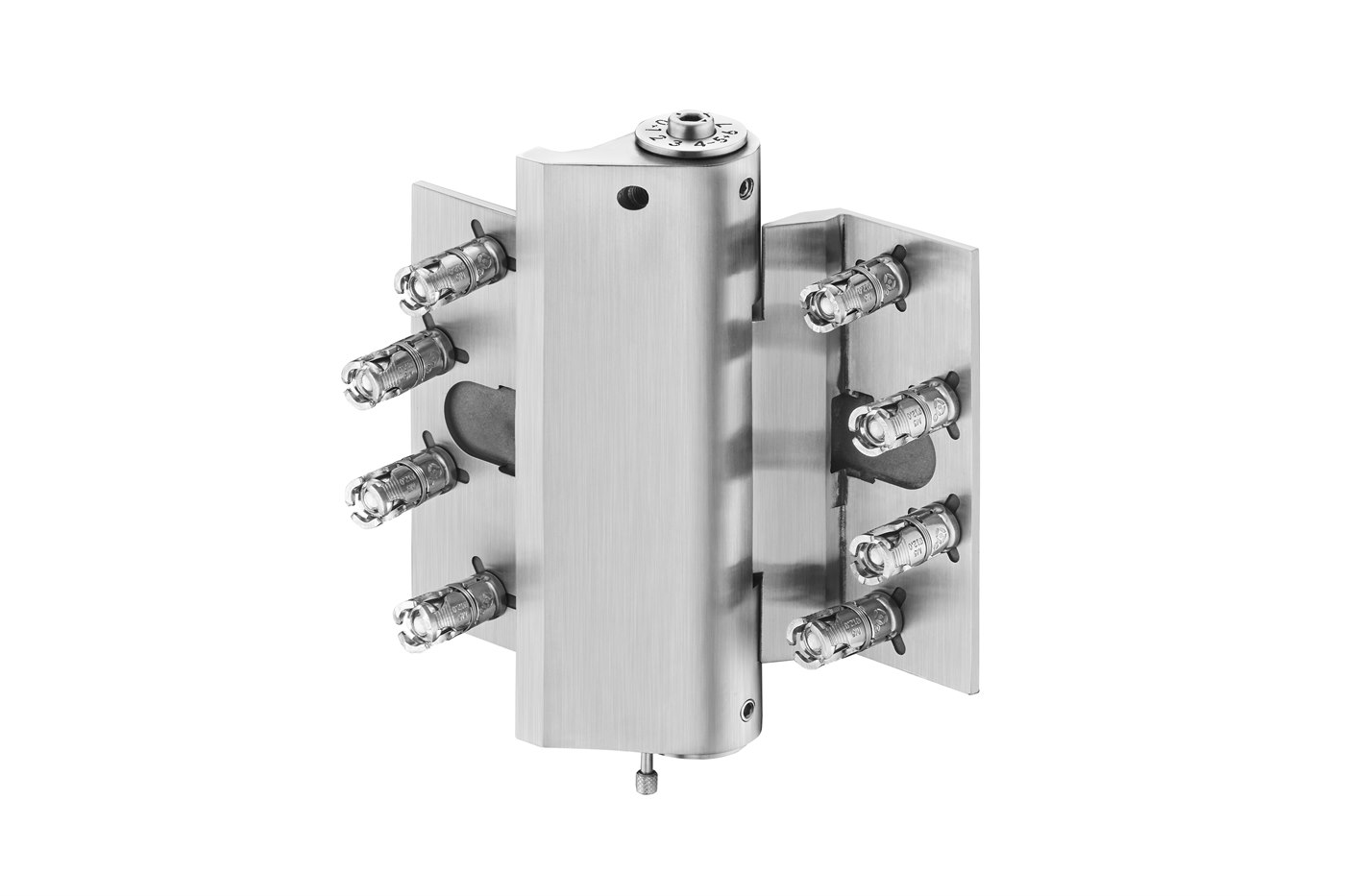

R
MDEA
FAST Installation 快速安裝
Strong 強固
Secure Locking 安全鎖固
Self-centering 自動定心
Expansion Technology 膨脹技術
Second Load Peak 第二承載峰值
Worldwide Patented Innovation 全球專利創新
Universal MDEA
搭配 2mm 特殊華司工程，可適用各種 M6×25mm 螺絲頭部與各行業泛用固定需求。
With 2 mm special lock washer engineering for M6×25 mm screw heads and universal installation across industries.
Special MDEA
無華司設計，專為 D · K · M · R 鉸鏈系統配套，直接與葉片溝槽定位並形成雙重膨脹鎖固。
No-washer design for the D.K.M.R. hinge system, locking into hinge-leaf grooves with double-expansion holding force.
+ 外掛支架加購 Bracket Add-on
STD-4501 · MDEA COMPATIBLE · 加購配件 OPTIONAL ADD-ON FOR K / M / R
STD-4501 外掛支架搭配 MDEA 馬吉双固錨，為 K / M / R 鉸鏈系列的加購配件 — 表面安裝、無需改裝既有門框，適合 retrofit 與現場快速整合。
The STD-4501 surface-mount bracket with MDEA dual-expansion anchors is an optional add-on for K / M / R hinges — no frame modification required, ideal for retrofit and on-site integration.
+
STD-4501 支架 BRACKET
K
支架 + K BRACKET
M
支架 + M BRACKET
R
支架 + R BRACKET
Core Values 核心價值
- WA+ UNITED Together 你我同心
- Create Win-Win Success 共創雙贏
- Unique and Unmatched 舉世無雙
- Engineered for the World's Doors 為世界的門而生
Official Global Launch 全球正式發表
The Waterson Multifunctional Modular Hinge System and Multifunctional Modular Expansion Anchor (MDEA) will be officially presented to the global market at TIDE 2026 (Taiwan Interior Design Expo), July 9–12, 2026.
Waterson 多功能模組化門鉸鏈系統與多功能模組化膨脹錨（MDEA），將於 2026 年 7 月 9–12 日在台灣室內設計展（TIDE 2026）正式向全球市場發表。
PROJECT SUPPORT · 專案支援
需要專屬的門控建議嗎？
Need a recommendation for a specific door?
請提供您的門片類型、尺寸、重量、表面處理及開門方向，我們將為您推薦最適合的鉸鏈與自動關門配置。
Send us the door type, size, weight, finish and swing direction. We'll suggest the right hinge and self-closing combination for the job.
