Barrel Raised 凸軸型鉸鏈
R 系列採凸軸葉片結構（Barrel Raised），主攻北美建築五金通路。R 與 K / M 共享模組化軸心平台（B-type 軸心），葉片外觀與 M 系列有所差異，提供不同視覺輪廓選擇。任何門扇皆可安裝 R 系列；偏軸凸出的頁片設計所需平面深度較小，特別適合牆與門呈 90°（或 45°）轉角、後方空間不足以安裝平面型鉸鏈的場合，例如乾濕分離衛浴的轉角淋浴門、樓梯間轉角出入口等空間受限場景。
R series features a barrel raised leaf structure targeting North American architectural hardware. Shares the B-type modular spindle-core platform with K & M, with a distinct barrel raised leaf profile. Any door can use the R series; its offset leaf needs less flat mounting depth, making it the right choice where the wall meets the door at a 90° (or 45°) corner and there isn't enough flat space behind for a mortise-style hinge — for example, a corner shower door in a compact wet/dry bathroom or a tight stairwell corner entry.
產品圖庫 Product Gallery
R SERIES · MODULE LINEUP · MDEA · PRODUCT SHOWCASE
Barrel Raised · 凸軸葉片輪廓
R 系列凸軸外型（Barrel Raised）符合北美市場審美與規格偏好，與 M 系列 Mortise 互嵌型配合使用，為同一模組化平台的不同視覺解法。
Barrel raised profile matches North American market aesthetics and specs. Works alongside M series as a visual alternative on the same modular platform.
12 色扁束線（W 選配）Hidden Wiring
W 隱藏式配線版本採用；UL-10362 Teflon 250°C 28AWG × 12F 12 色扁排線，12 色依循 ASSA ABLOY 美國市場標準；或選 UL-1569 PVC 105°C AWG26。
W wiring version. UL-10362 Teflon 250°C 28AWG × 12F 12-color cable per ASSA ABLOY US color standards.
MDEA 馬吉双固錨 · 雙段安全保護
MDEA 需基材厚度 ＞ 3 mm、Ø12 mm 鑽孔與 3 mm 寬溝槽。第一段錨固達到極限後，第二段錨固持續提供夾持力，降低突發拉拔失效風險。
Requires >3mm substrate thickness, Ø12mm drill bit and width of 3mm drill hole for use; the second anchoring stage continues holding force to reduce sudden pull-out failure.
R 系列模組組合 R Series Modules
HSW · TSW · LSW · Barrel Raised · B-type 軸心軸心模組對照 Axis Module Reference
SHARED ACROSS D · K · M · R選購建議與保固 Selection & Warranty
SHARED ACROSS D · K · M · RTS · 安全栓裝置 With Safety Pin Device

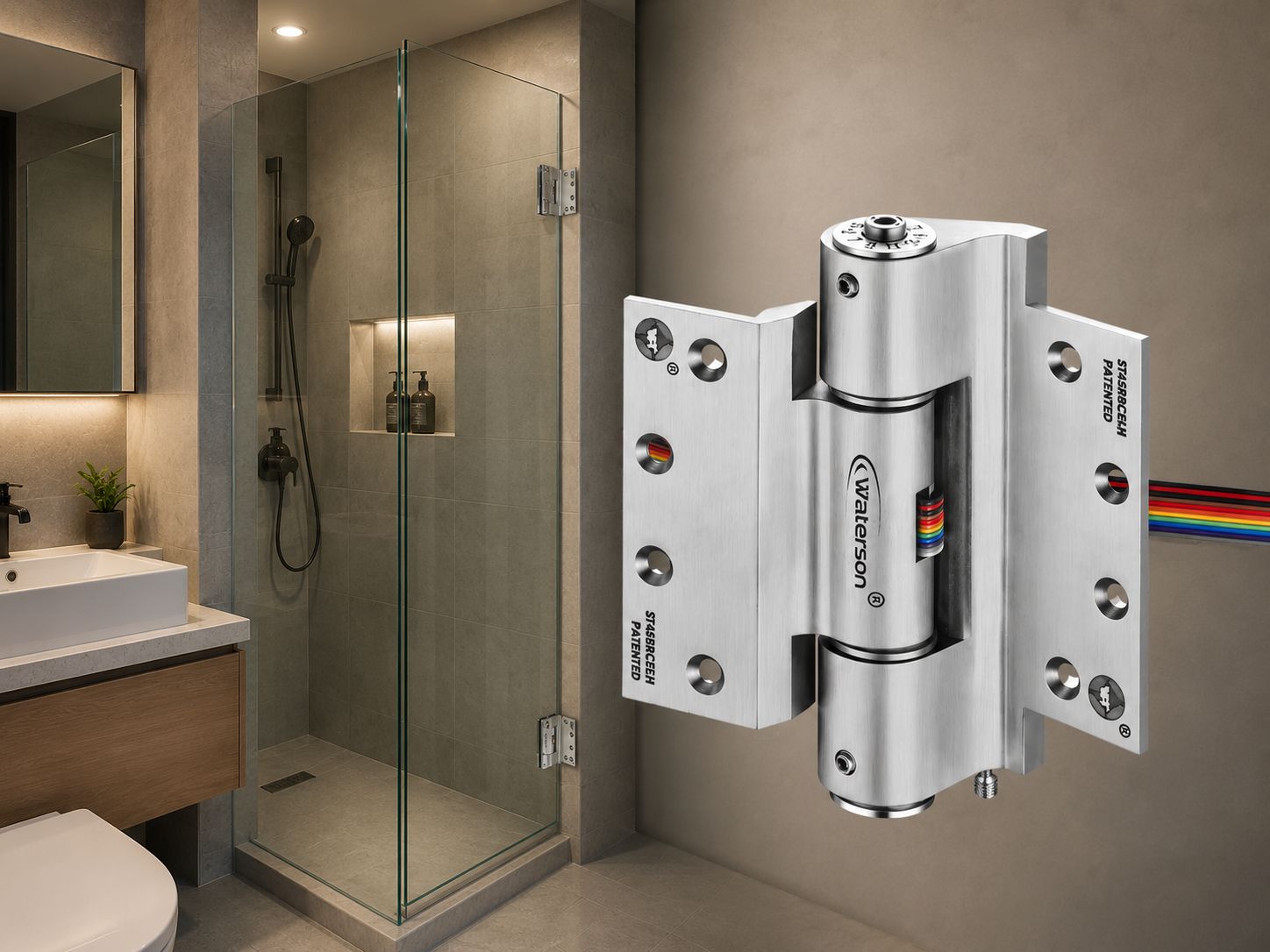

TSW 為純機械煞車模組整合安全插銷 — 可暫停門扇，並具防止他人非法入侵的保護裝置。
TSW integrates a mechanical brake module with a safety pin — temporary door stopping and added protection against unauthorized entry.
LS · 逃生安全栓 With Escape Safety Pin

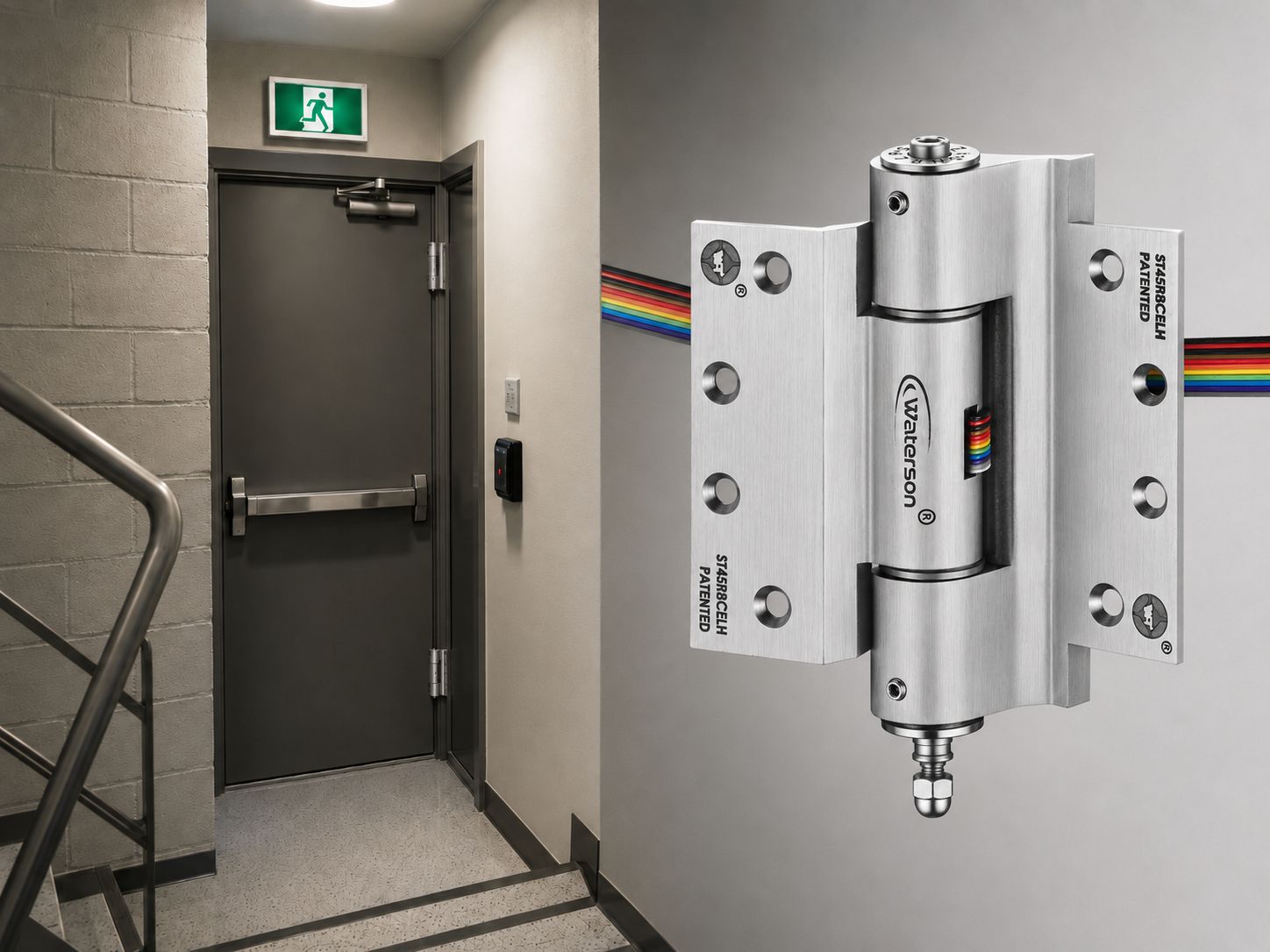

LSW 為機電式鉸鏈鎖整合緊急逃生插銷 — 緊急時可拉下逃生安全插銷並立即推門離開。
LSW integrates an electromechanical hinge lock with an escape safety pin — in an emergency, pull down the escape safety pin and push the door open immediately.
TS 純機械 · 近乎終生保固 Near-lifetime Warranty
TS 純機械結構壽命極長、幾乎用不壞，可宣告近乎終生保固 —— 只要是 Waterson 支持者、負擔來回運費，即使 10 年後（甚至下一代）都可汰舊換新。
TS pure-mechanical: near-lifetime warranty. Supporters paying round-trip shipping may exchange units anytime.
