旗艦型鉸鏈
D 系列為萬用系列，可直接鎖固於任何平面。搭載雙階齒輪 (+) 轉換軸心模組，內部結構幾乎 100% 空間全用滿。A-type + 軸心為 D 鉸鏈專屬設計；K / M / R 共享模組化軸心平台，A / B 軸心配置依專案規格確認。
The all-purpose flagship D series mounts directly on any flat surface, and features the A-type dual-stage gear (+) pivot exclusively designed for the D hinge. K/M/R share the modular spindle-core platform with A/B configuration by project spec.
產品圖庫 Product Gallery
D SERIES · PRODUCT SHOWCASE

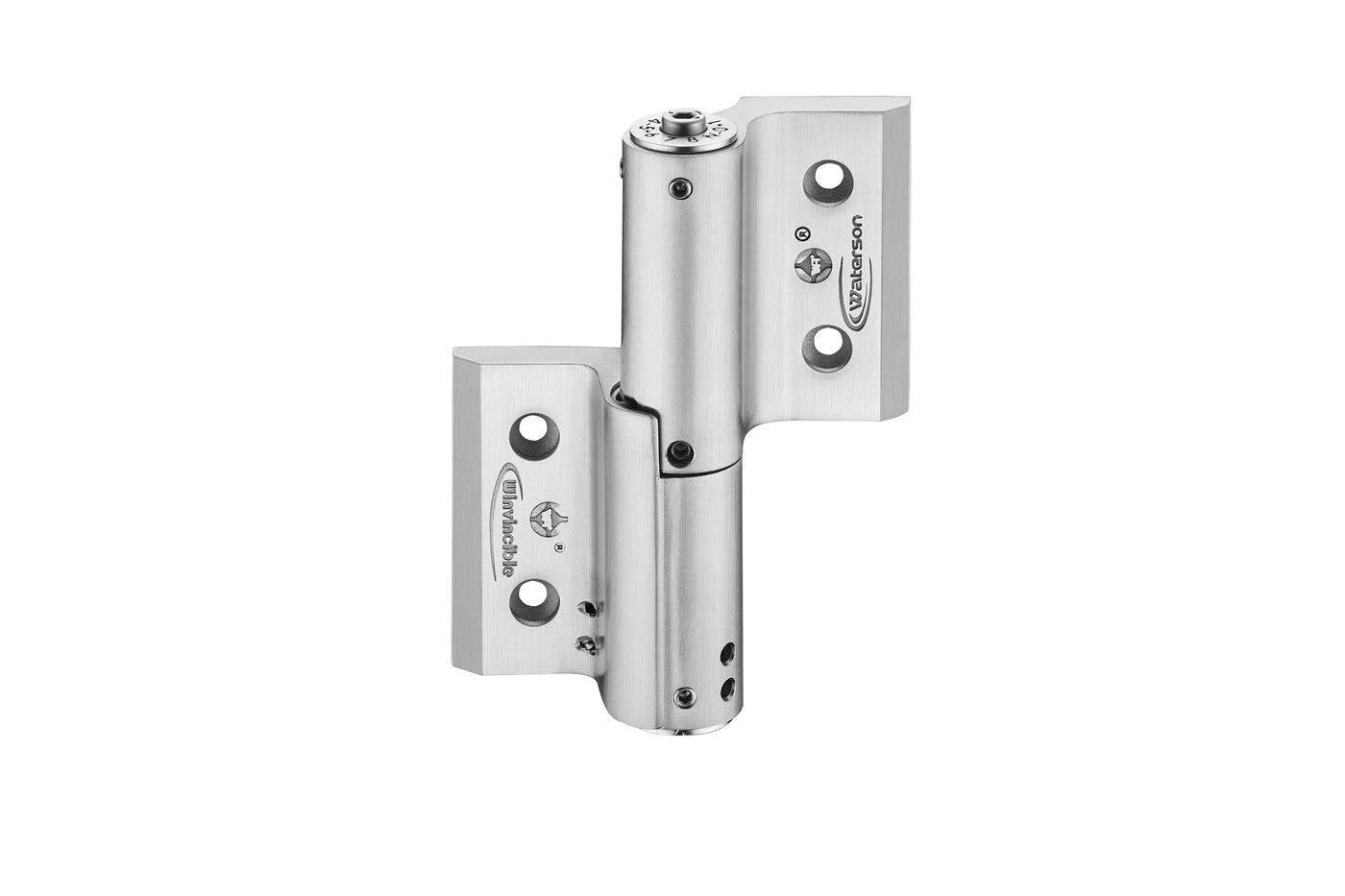

葉片雷雕品牌 Engraved Branding
每片葉片雷雕 Waterson / Winvincible 品牌與型號，軸心頂部刻有蓄扭力刻度盤，調整時一目了然。
Laser-engraved branding & model code; torque scale dial on spindle top.
12 色扁束線（W 選配）Hidden Wiring
W 隱藏式配線版本採用；UL-10362 Teflon 250°C 28AWG × 12F 12 色扁排線，12 色依循 ASSA ABLOY 美國市場標準；或選 UL-1569 PVC 105°C AWG26。
W hidden wiring optional. UL-10362 Teflon 250°C 28AWG × 12F 12-color cable or UL-1569 PVC 105°C AWG26 per ASSA ABLOY US color standards.

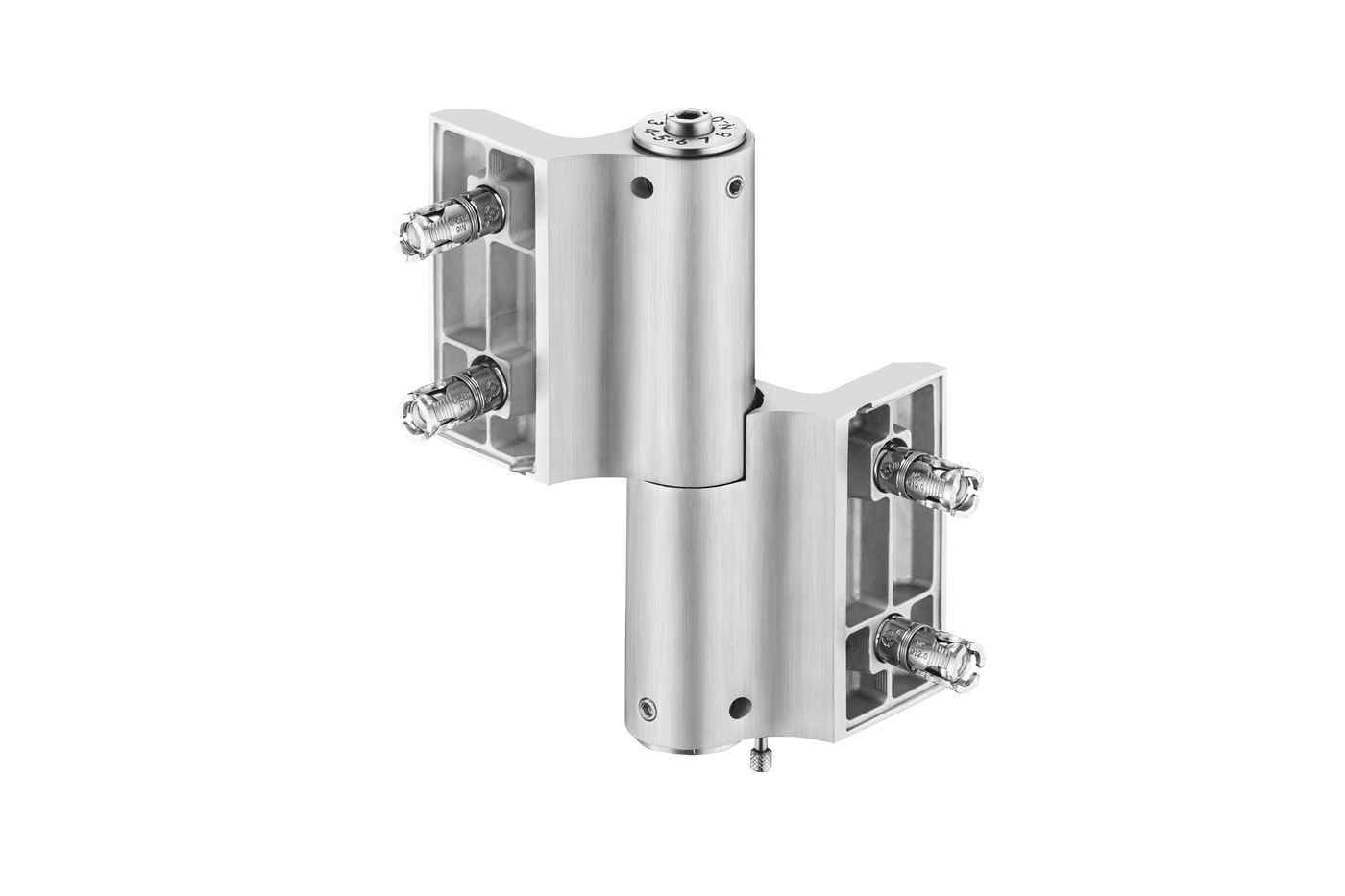

MDEA 馬吉双固錨 · 雙段安全保護
MDEA 需基材厚度 ＞ 3 mm、Ø12 mm 鑽孔與 3 mm 寬溝槽。第一段錨固達到極限後，第二段錨固持續提供夾持力，形成第二承載峰值設計，有效降低突發拉拔失效風險。
Requires >3mm substrate thickness, Ø12mm drill bit and width of 3mm drill hole for use; the second anchoring stage continues holding force to form a second load peak, reducing sudden pull-out failure.
D 系列模組組合 D Series Modules

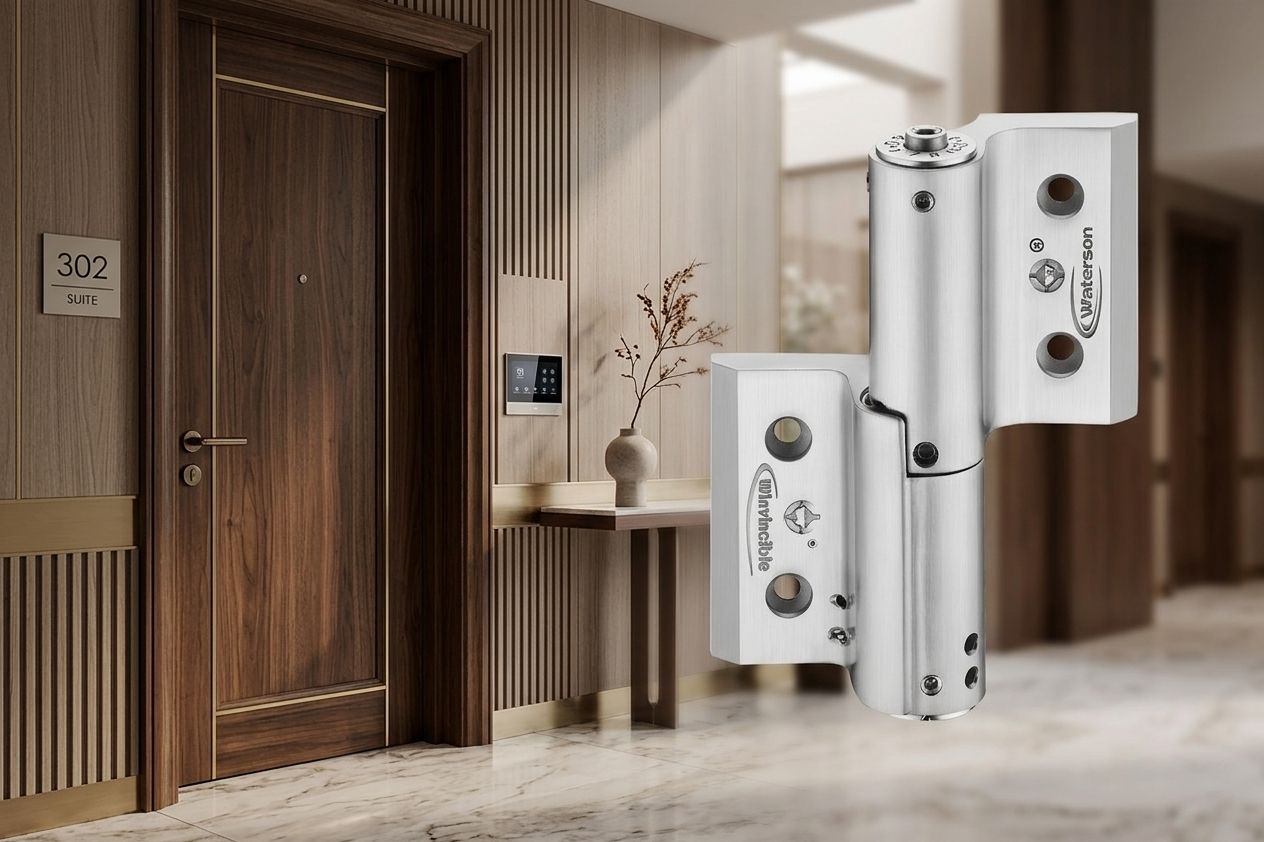

HSW · TSW · LSW (+ DUAL-STAGE GEAR · 雙階齒輪)軸心模組對照 Axis Module Reference
SHARED ACROSS D · K · M · R選購建議與保固 Selection & Warranty

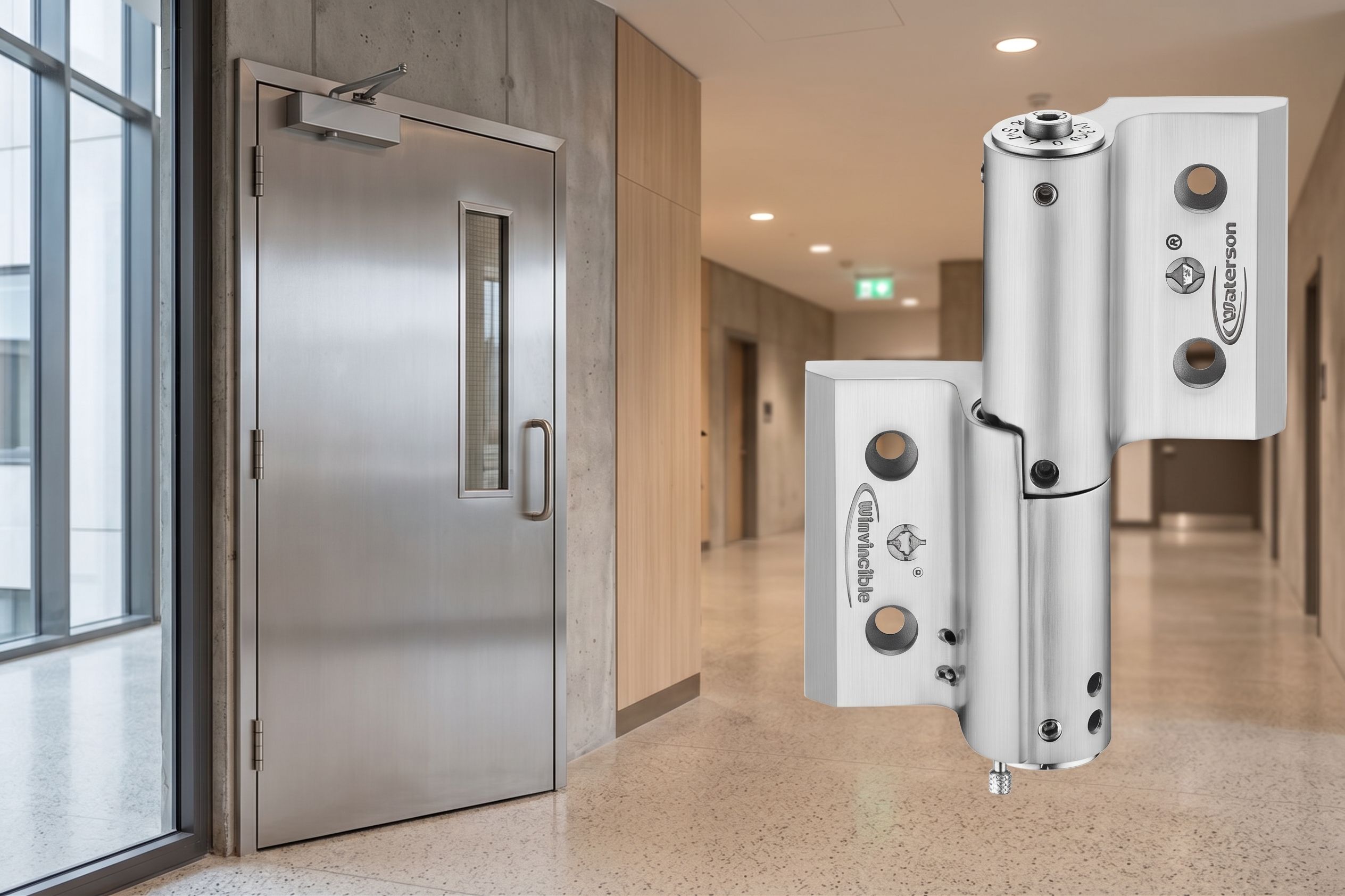

SHARED ACROSS D · K · M · RTS · 安全栓裝置 With Safety Pin Device
TSW 為純機械煞車模組整合安全插銷 — 可暫停門扇，並具防止他人非法入侵的保護裝置。
TSW integrates a mechanical brake module with a safety pin — temporary door stopping and added protection against unauthorized entry.

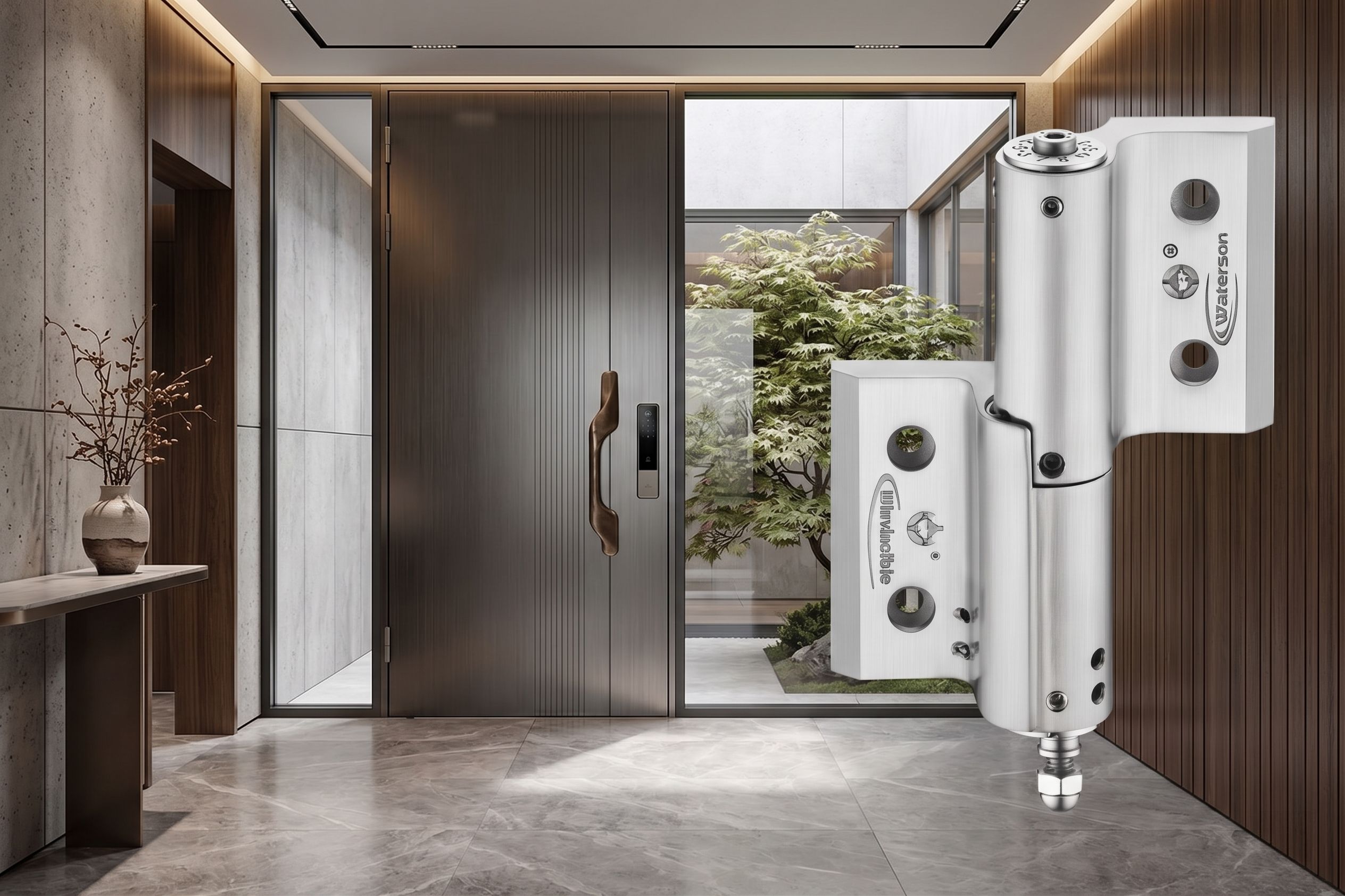

LS · 逃生安全栓 With Escape Safety Pin
LSW 為機電式鉸鏈鎖整合緊急逃生插銷 — 緊急時可拉下逃生安全插銷並立即推門離開。
LSW integrates an electromechanical hinge lock with an escape safety pin — in an emergency, pull down the escape safety pin and push the door open immediately.
TS 純機械 · 近乎終生保固 Near-lifetime Warranty
TS 純機械結構壽命極長、幾乎用不壞，可宣告近乎終生保固 —— 只要是 Waterson 支持者、負擔來回運費，即使 10 年後（甚至下一代）都可汰舊換新。
TS pure-mechanical: near-lifetime warranty. Supporters paying round-trip shipping may exchange units anytime, even 10+ years later.
